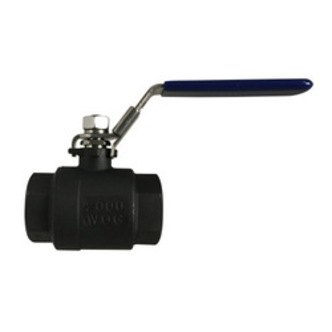

Midland Industries MIDM 949117
Midland Industries 949117 2-Piece Ball Valve, 1-1/2 in Nominal, NPT End Style, CF8M Steel Body, Full Port, PTFE Ball Seat/Stem Packing/Thrust Washer/Joint Gasket/Plastic Handle Cover Softgoods, Import
Factory Order
Midland Industries Ball Valve, 2-Piece, 1-1/2 in Nominal, NPT, 2000 psi, -10 to 150 deg C, Full Port, Media: Gas, Oil and Water, Lever Handle Actuator, CF8M Steel Ball, 4.06 in Inlet to Outlet Length, 3.54 in Top to Inlet Center, CF8M Steel Body, 316 Stainless Steel Stem/Gland Nut/Spring Washer/Stem Nut/Lock Device/304 Stainless Steel Lock Device/Handle Trim, PTFE Ball Seat/Stem Packing/Thrust Washer/Joint Gasket/Plastic Handle Cover, Import
Specifications
Actuator TypeLever Handle
Ball MaterialCF8M Steel
Body MaterialCF8M Steel
Domestic/ImportImport
End StyleNPT
Inlet to Outlet Length4.06 in
MediaGas, Oil and Water
Nominal Size1-1/2 in
Port TypeFull
Pressure Rating2000 psi
Softgoods MaterialPTFE Ball Seat/Stem Packing/Thrust Washer/Joint Gasket/Plastic Handle Cover
Temperature Rating-10 to 150 deg C
Top to Inlet Center3.54 in
Trim Material316 Stainless Steel Stem/Gland Nut/Spring Washer/Stem Nut/Lock Device/304 Stainless Steel Lock Device/Handle
Type2-Piece
