Midland Industries MIDM 65655

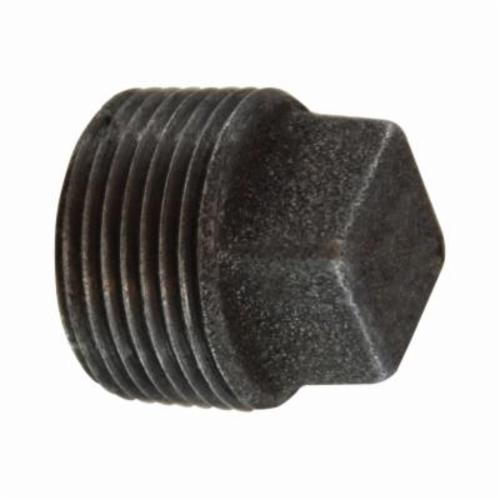

Midland Industries 65655 Cored Square Head Plug, 1 in Nominal, Malleable Iron, Black Oxide, Import

Invoice description: 1 Black Sq Hd Cored Plug

UNSPSC: 40173506
Manufacturer PN: 65655
$2.06 EA
In stock (164)
QTY:


Midland Industries Square Head Plug, Cored, Plug Fitting/Connector Type, 1 in Nominal Size, 1-1/4 in Length, 300 psi, Malleable Iron, Black Oxide, Import

  • Features

  • With better molds we can reduce parting lines and rough edges resulting in better fluid flow
  • By using a low temperature galvanizing process the coating is more durable which means a longer lasting fitting
  • All Fittings are 100% Pressure Tested to 300# Class
  • 5% min elongation
  • 28.4kg/mm Min tensile strength
  • 0.5 x 0.82 in head

Specifications

Domestic/ImportImport
FinishBlack Oxide
Fitting/Connector TypePlug
Length1-1/4 in
MaterialMalleable Iron
Nominal Size1 in
Pressure Rating300 psi
TypeCored

Additional Information

Standards/ApprovalUL/FM Listed|RoHS Compliant|ANSI B 16.14|ANSI B 16.3
Country of OriginCN
