Midland Industries MIDM 57066

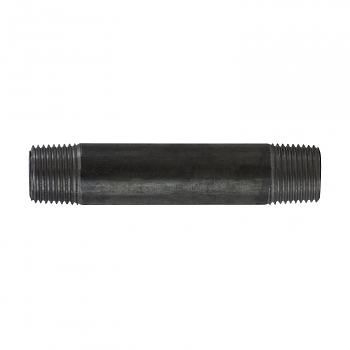

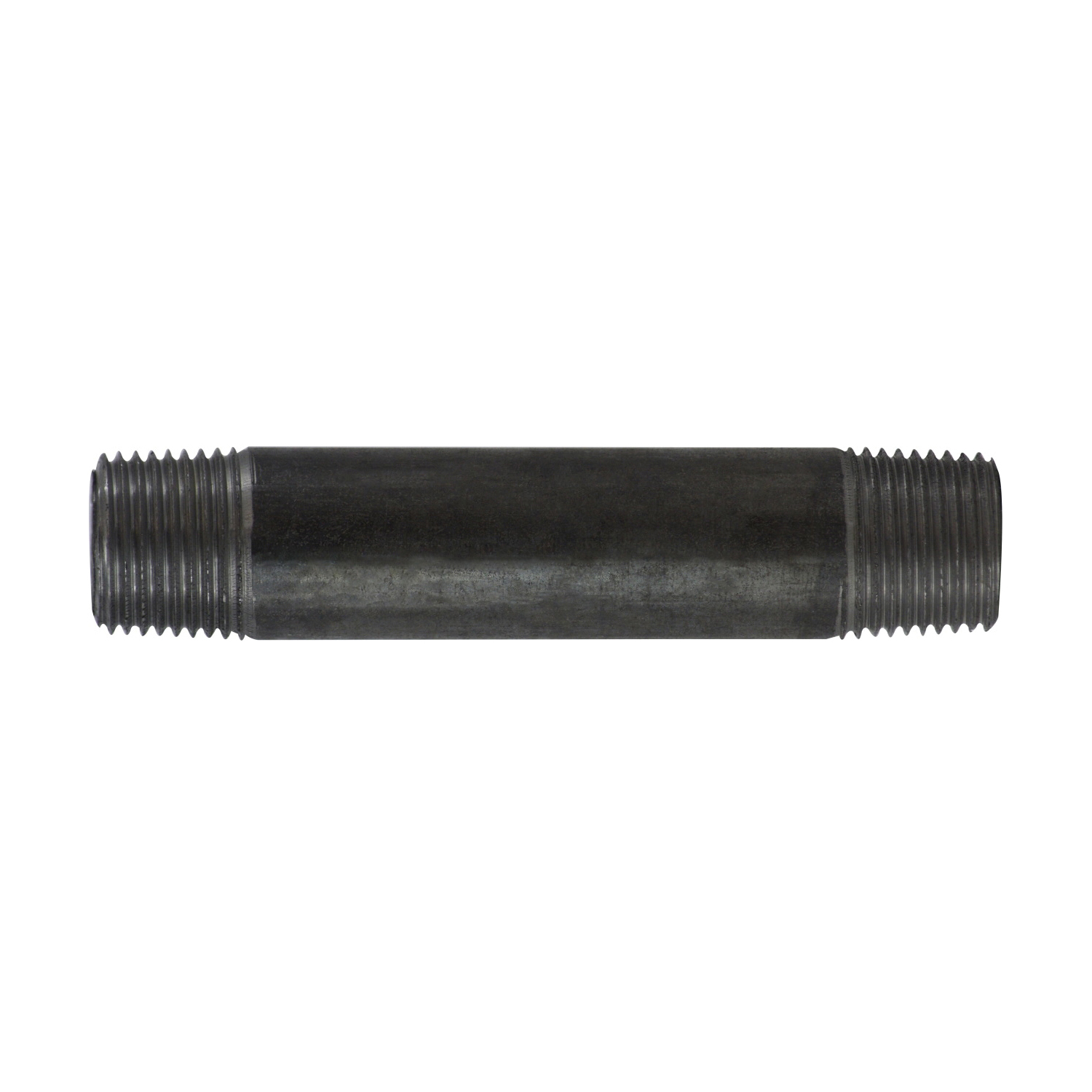

Midland Industries 57066 Standard Pipe Nipple, 1/2 in Nominal, NPT End Style, 4 in L, Steel, Black, SCH 40/STD, Seamless/Welded, Import
Invoice description:
1/2 X 4 Black Steel Nipp Le
Midland Industries Pipe Nipple, Standard, 1/2 in Nominal Size, NPT, 4 in Length, SCH 40/STD, -200 to 150 deg F, Seamless/Welded, Steel, Black, Import
Features
- 0.109 in Wall Thickness
- All pipe is hydrostatic tested
- Steel and wrought iron welded
- Protected against oxidation with varnish coating
- 0.622 in ID x 0.84 in OD
- All pipe is roller cut, a visual inspection of seams, excessive galvanizing, mid-welds, poor galvanizing, bends, roundness, under and over weight of the pipe is made at the time it is cut
- 33.7 kg/sq-mm at 48000 psi, 20 kg/sq-mm at 28500 psi tensile strength
- Pipe lengths are cut to a tolerance of + or - 1/16 in of the actual length
- All pipe is chaser thread cut to American standard tapered pipe thread standards
- This is 3/4 in taper per foot
Specifications
Domestic/ImportImport
End StyleNPT
FinishBlack
Length4 in
MaterialSteel
Method of ManufactureSeamless/Welded
Nominal Size1/2 in
Schedule RatingSCH 40/STD
Temperature Rating-200 to 150 deg F
TypeStandard
