Midland Industries MIDM 40017

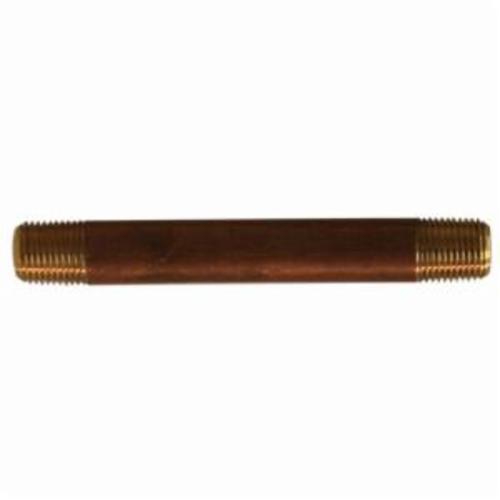

Midland Industries 40017 Standard Pipe Nipple, 1/8 in Nominal, 12 in L, Brass, NPT End Style

Invoice description: Nipple Brass 1/8x12"

UNSPSC: 40173301
Manufacturer PN: 40017
$22.78 EA
In stock (12)
QTY:


Midland Industries Pipe Nipple, Lead Free Standard, 1/8 in Nominal, NPT, 12 in Length, 370 psi at 100 deg F/370 psi at 200 deg F/320 psi at 300 deg F/140 psi at 400 deg F, 100 to 400 deg F, Seamless, Brass, Red, 0.281 in ID x 0.405 in OD x 0.062 in THK

  • Features

  • Meets legislation for potable water application
  • Lead free - no lead 125LB seamless threaded red brass nipples - 2200
  • The chemical analysis is 85% copper and 15% zinc

Specifications

ColorRed
Dimensions0.281 in ID x 0.405 in OD x 0.062 in THK
End StyleNPT
Length12 in
MaterialBrass
Method of ManufactureSeamless
Nominal Size1/8 in
Pressure Rating370 psi at 100 deg F/370 psi at 200 deg F/320 psi at 300 deg F/140 psi at 400 deg F
Temperature Rating100 to 400 deg F
TypeStandard

Additional Information

Standards/ApprovalANSI B1.20.1|ANSI B687-96|NSF-61 Approved|MS51846|RoHS Compliant|Federal Specifications WWN-351|Federal Government 5.3874|Federal Public Law 111-380|California AB 1953|Maryland HB-372|Louisiana Act No. 362|Vermont Statute|Title 9 Chapter 63: 247h|ASTM B43/ASTM B687-96|PROP65: This product can expose you to chemicals, including lead, which are known to the state of California to cause cancer and birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov
Country of OriginCN
