Lift-All LIFT EN90X6

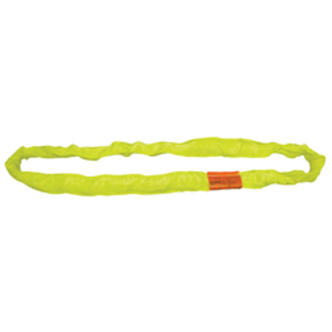

Lift-All Tuflex EN90X6 Endless Round Sling, 6 ft L, 8400 lb, Polyester, Yellow
Invoice description:
Sling Tuflex Round Plyst R (yellow) Class 4b
Lift-All Tuflex Round Sling, Endless, 6 ft Length, 8400 lb Vertical Hitch, 6700 lb Choker Hitch Capacity, 16800 lb Basket Hitch Capacity, 1-3/4 in Width Under Load, Yellow, 1-1/8 in Dia, Polyester, -50 to 200 deg F, Resists: UV Sunlight, Grease and Most Acids
Features
- Tuflex round sling is an endless synthetic sling made from a skein (continuous loop or hank) of polyester yarn covered by a double wall tubular jacket
- These durable and versatile endless slings will become your first choice for synthetic slings once youve tried them
- The round sling body can also be compared to sling webbing with the tubular jacket face yarns woven without binder yarns, this allows the core yarns to move independently within the jacket
- Color coded capacities for quick identification
- Easier to inspect than any other type of sling
- Durable and versatile endless slings will become your first choice for synthetic slings once youve tried them
- TUFF-TAG provides serial numbered identification for traceability
- Low stretch (about 3% at rated capacity)
- Round slings protect all load carrying core yarns from abrasion with an independent, double-walled woven jacket
- Maintains 100% of original strength until jacket damage exposes core yarns
Specifications
Basket Hitch Capacity16800 lb
Choker Hitch Capacity6700 lb
ColorYellow
Diameter1-1/8 in
Length6 ft
MaterialPolyester
ResistsUV Sunlight, Grease and Most Acids
Temperature Range-50 to 200 deg F
TypeEndless
Vertical Hitch Capacity8400 lb
Width Under Load1-3/4 in
Additional Information
IncludesPermanent Identification Tag
Standards/ApprovalASME B30.9|OSHA Compliant
Country of OriginUS
