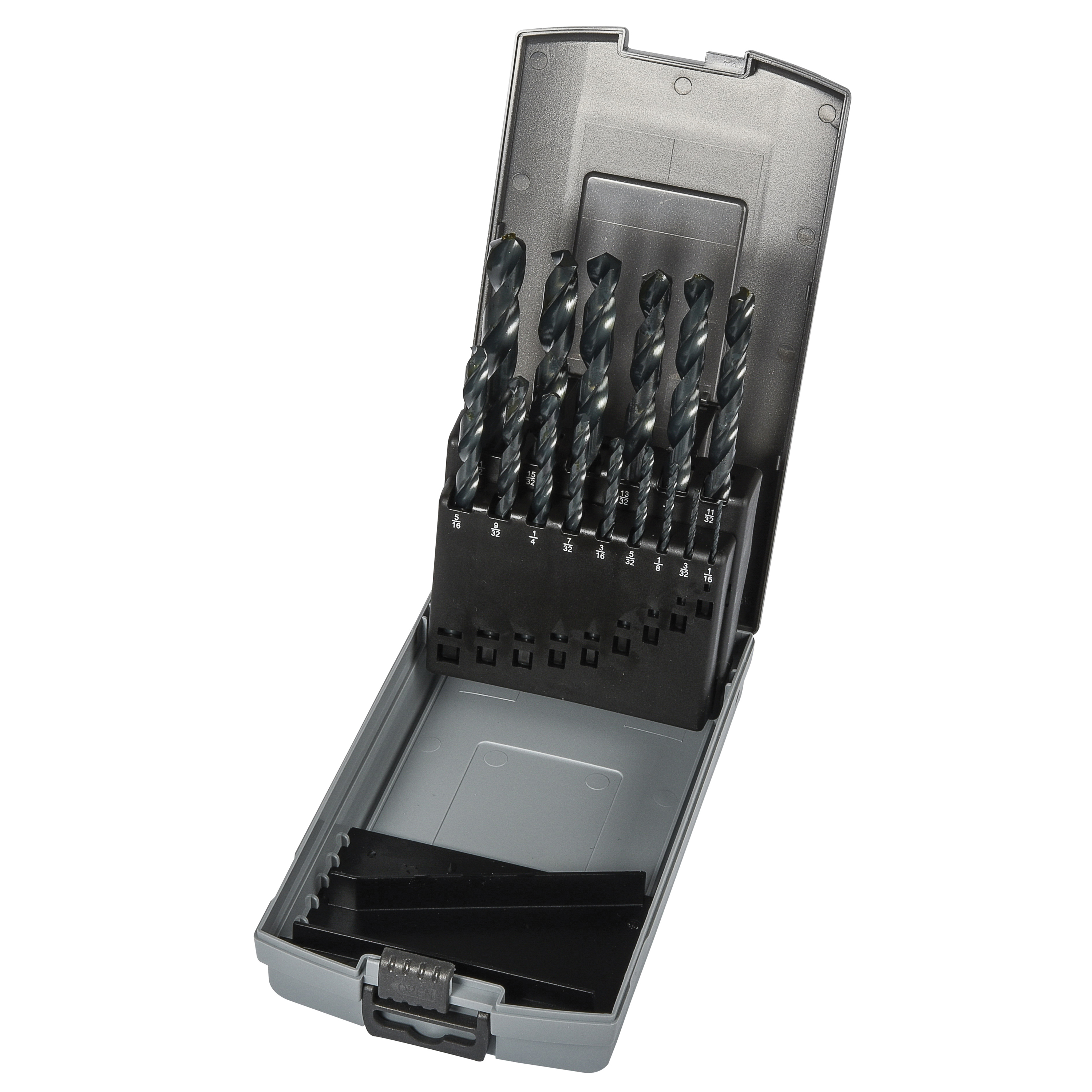

Precision Twist Drill JD SET C15

Precision Twist Drill 5995533 C15R10 General Purpose Jobber Length Drill Set, 1/16 in Min Drill Bit, 1/2 in Max Drill Bit, 118 deg Drill Point Angle, 15 Pieces, HSS, Steam Oxide

Invoice description: C15r10 Jbr Len Set C15r10 Hss Stm Ox 118d L10 Hss Brt 118d Jl Drill - Lh Jobber Ansi 23/64 Inch 5995533

UPC: 086071999788
UNSPSC: 27112845
Manufacturer PN: 5995533
$95.42 EA
Factory Order
Estimated to ship in 7 days
QTY:


Precision Twist Drill Jobber Length Drill Set, General Purpose, Series: C15R10, Imperial System of Measurement, 1/16 in Minimum Drill Bit Size, 1/2 in Maximum Drill Bit Size, 118 deg Drill Point Angle, 15 Piece, Specifications: 4XD Cutting Depth, Conventional Point, R10 Style, Right Hand Cut, Straight Shank, HSS, Steam Oxide

  • Features

  • Steam oxide reduces wear and chip welding in harder ferrous materials

Specifications

ApplicationFor general drilling applications
Drill Point Angle118 deg
FinishSteam Oxide
MaterialHSS
Maximum Drill Bit Size1/2 in
Minimum Drill Bit Size1/16 in
Number of Pieces15
SeriesC15R10
Specifications4XD Cutting Depth, Conventional Point, R10 Style, Right Hand Cut, Straight Shank
System of MeasurementImperial
TypeGeneral Purpose

Additional Information

Includes1/16 in, 3/32 in, 1/8 in, 5/32 in, 3/16 in, 7/32 in, 1/4 in, 9/32 in, 5/16 in, 11/32 in, 3/8 in, 13/32 in, 7/16 in, 15/32 in and 1/2 in Drills
Standards/ApprovalANSI Specified|CSA Approved
Country of OriginBR
