Midland Industries MIDM 28115

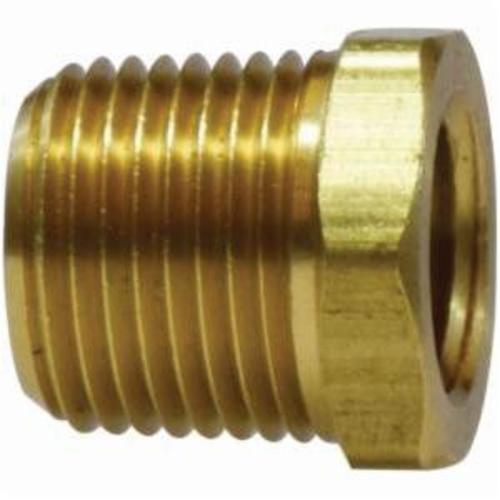

Midland Industries 28115 Hex Head Bushing, 1 x 3/4 in Nominal, MNPT x FNPT End Style, Brass, Import

Invoice description: 1 X 3/4 Mip X Fip Bs Bushing

UNSPSC: 40172306
Manufacturer PN: 28115
$7.05 EA
Factory Order
Estimated to ship in 7 days
QTY:


Midland Industries Bushing, Hex Head, Fitting/Connector Type: Bushing, 1 x 3/4 in Nominal, MNPT x FNPT, 1.37 in Hex, 1.31 in Length, 1000 psi, Brass, -65 to 250 deg F, Import

  • Features

  • Fair resistance vibration
  • Used with brass, bronze, copper, steel, aluminum and iron pipe
  • /- 0.02 tolerance on all dimensions
  • 1-11-1/2 x 3/4-14 thread size

Specifications

ApplicationFor grease, fuels, LP and natural Gas (available on special order), refrigeration, instrumentation and hydraulic systems
Domestic/ImportImport
End StyleMNPT x FNPT
Fitting/Connector TypeBushing
Hex Size1.37 in
Length1.31 in
MaterialBrass
Nominal Size1 x 3/4 in
Pressure Rating1000 psi
Temperature Rating-65 to 250 deg F
TypeHex Head

Additional Information

Standards/ApprovalASA Certified|ASME Specified|SAE 130140
Country of OriginCN
