GARR GARR 98490

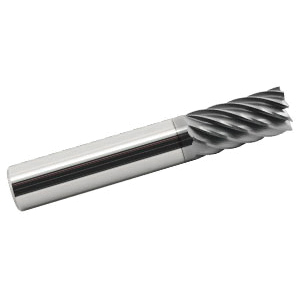

GARR 98490 TMS Finisher Non-Center Cutting Square End Mill, 20 mm Dia Cutter, 80 mm Length of Cut, 11 Flutes, 20 mm Dia Shank, 150 mm OAL, AlCrN Coated

UNSPSC: 27112803
Manufacturer PN: 98490
$440.90 EA
Factory Order
Estimated to ship in 7 days
QTY:


GARR End Mill, Finisher Non-Center Cutting Square End, Series: TMS, 20 mm Diameter Cutter, 150 mm Overall Length, 80 mm Length of Cut, 11 Flutes, Multiple Flute, 20 mm Shank Diameter, Right Hand Cutting Direction, 38 deg Helix Angle, Submicron Solid Carbide, AlCrN Coated

  • Features

  • Engineered for titanium
  • Multiple flutes for increased feed rates
  • Odd number of flutes to naturally break up harmonics
  • Effective for Trochoidal milling
  • Up to 5% Radial (ap) engagement
  • Can be used to finish most steels under 40Rc, as well as aluminum
  • Conventional grind for better finish cutting and less push off
  • Regrindable
  • Finisher for titanium

Specifications

ApplicationUsed to finish most steels under 40Rc, as well as aluminum
Cutter Diameter20 mm
Cutting DirectionRight Hand
FinishAlCrN Coated
Flute TypeMultiple
Helix Angle38 deg
Length of Cut80 mm
MaterialSubmicron Solid Carbide
Number of Flutes11
Overall Length150 mm
SeriesTMS
Shank Diameter20 mm
TypeFinisher Non-Center Cutting Square End
