Fullerton FULLT 92221

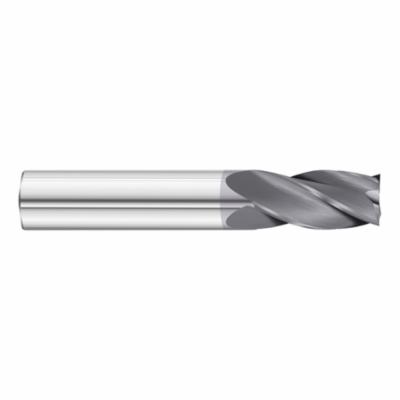

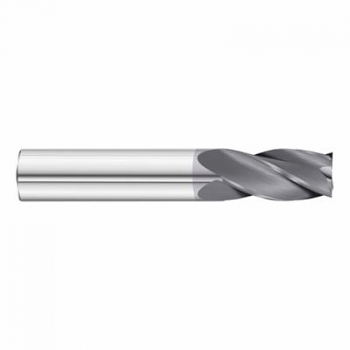

Fullerton 92221 3200 Center Cutting Single End Standard Length Square End End Mill, 22 mm Dia Cutter, 40 mm Length of Cut, 4 Flutes, 22 mm Dia Shank, 100 mm OAL, TiAlN Coated

UNSPSC: 23242511
Manufacturer PN: 92221
$259.72 EA
Factory Order
Estimated to ship in 7 days
QTY:


Fullerton End Mill, Center Cutting Single End Standard Length Square End, Series: 3200, 22 mm Diameter Cutter, 100 mm Overall Length, 40 mm Length of Cut, 4 Flutes, Spiral Flute, 22 mm Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, ISO Code: 9001:2008, Dura Carb, TiAlN Coated

  • Features

  • h6 shank diameter tolerance
  • +0.000 in, -0.002 in/+0.000 mm, -0.05 mm cutter diameter tolerance

Specifications

ApplicationGeneral Purpose
Cutter Diameter22 mm
Cutting DirectionRight Hand
FinishTiAlN Coated
Flute TypeSpiral
Helix Angle30 deg
ISO Code9001:2008
Length of Cut40 mm
MaterialDura Carb
Number of Flutes4
Overall Length100 mm
Series3200
Shank Diameter22 mm
TypeCenter Cutting Single End Standard Length Square End
