Fullerton FULLT 30212

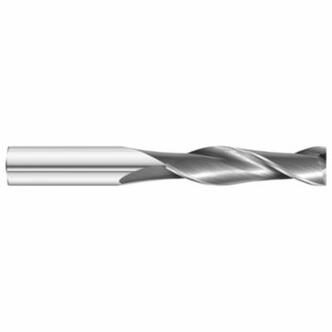

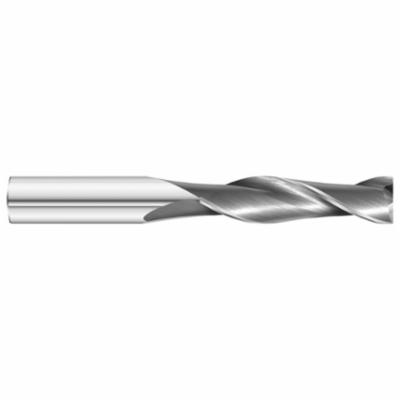

Fullerton 30212 3215 Center Cutting Extra Long Length Single End Square End End Mill, 3/8 in Dia Cutter, 1 in Length of Cut, 2 Flutes, 3/8 in Dia Shank, 4 in OAL, Uncoated
Invoice description:
Em 3/8 X 1loc X 3/8 X 4 2fl Ticn
Factory Order
Fullerton End Mill, Center Cutting Extra Long Length Single End Square End, Series: 3215, 3/8 in Diameter Cutter, 4 in Overall Length, 1 in Length of Cut, 2 Flutes, Spiral Flute, 3/8 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, ISO Code: 9001:2008, Dura Carb, Uncoated
Features
- h6 shank diameter tolerance
- +0.000 in, -0.002 in/+0.000 mm, -0.05 mm cutter diameter tolerance
Specifications
ApplicationGeneral Purpose
Cutter Diameter3/8 in
Cutting DirectionRight Hand
FinishUncoated
Flute TypeSpiral
Helix Angle30 deg
ISO Code9001:2008
Length of Cut1 in
MaterialDura Carb
Number of Flutes2
Overall Length4 in
Series3215
Shank Diameter3/8 in
TypeCenter Cutting Extra Long Length Single End Square End
Additional Information
Country of OriginUS
Specification Sheet
