GARR GARR 89745

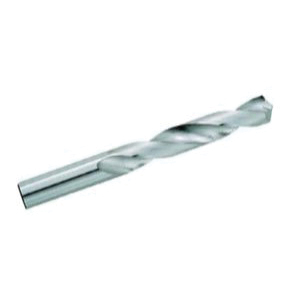

GARR 89745 1205 Jobber Length Drill Bit, Z Drill - Letter, 0.413 in Drill - Decimal Inch, 135 deg Point, Submicron Grain Solid Carbide, Bright
Invoice description:
Drill Jl Z (0.413) Crb Gp135 Brt 5xd
Factory Order
GARR Jobber Length Drill Bit, Series: 1205, Imperial, Z Drill - Letter, 0.413 in Drill - Decimal Inch, 4-1/2 in Overall Length, 5XD Cutting Depth, 2 Flutes, Spiral Flute, 2-7/8 in Flute Length, 0.413 in Shank, 135 deg Point, 4-Facet/Self-Centering Point, Right Hand Cutting Direction, Submicron Grain Solid Carbide Cutting Edge, Submicron Grain Solid Carbide, Bright, Applicable Materials: Stainless Steel Alloy, Mild Steel and Titanium Alloy
Features
- Adaptability when converting from high speed steel
- No spotting required in most applications
- 25 deg helix angle
- Live tooling recommended on lathe processes
Specifications
ApplicationFor general purpose applications
Applicable MaterialsStainless Steel Alloy, Mild Steel and Titanium Alloy
Cutting Depth5XD
Cutting DirectionRight Hand
Cutting Edge MaterialSubmicron Grain Solid Carbide
Drill Diameter Measurement SystemImperial
Drill Size - Decimal Inch0.413 in
Drill Size - LetterZ
FinishBright
Flute Length2-7/8 in
Flute TypeSpiral
MaterialSubmicron Grain Solid Carbide
Number of Flutes2
Overall Length4-1/2 in
Point Angle135 deg
Point Type4-Facet/Self-Centering
Series1205
Shank Size0.413 in
Additional Information
Country of OriginUS
Specification Sheet
