GARR GARR 83827

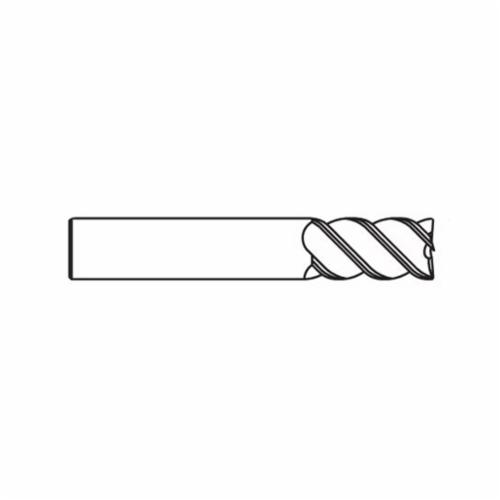

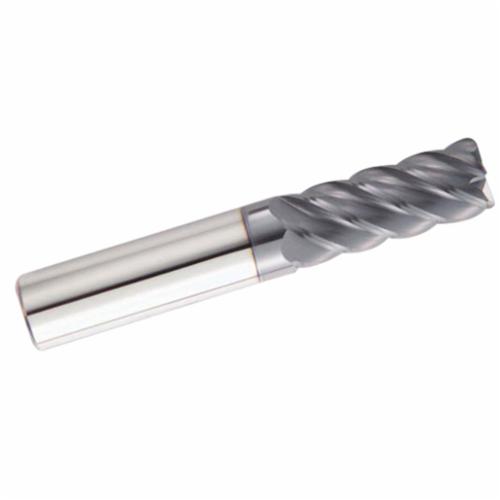

GARR 83827 255RA Center Cutting Standard Length High Performance End Mill, 1/4 in Dia Cutter, 3/8 in Length of Cut, 5 Flutes, 1/4 in Dia Shank, 2 in OAL, Balinit X.CEED

Invoice description: Em 1/4x3/8locx1/4x2 5fl Hp

UNSPSC: 23242511
Manufacturer PN: 83827
$29.60 EA
Factory Order
Estimated to ship in 7 days
QTY:


GARR High Performance End Mill, Center Cutting Standard Length, Series: 255RA, 1/4 in Diameter Cutter, 2 in Overall Length, 3/8 in Length of Cut, 5 Flutes, 1/4 in Shank Diameter, 45 deg Helix Angle, 1-5/8 in Shank Length, Solid Submicron Carbide, Balinit X.CEED

  • Features

  • High performance milling in steels, stainless steel and exotics
  • Rigid work holding, machine stability and part integrity are critical
  • Up to 40% faster than uncoated
  • Improved finishes in titanium
  • An ideal tool for finishing applications after using the VRX end mill
  • 0.015 in Corner radius
  • Recommended for steels, stainless steel and exotics

Specifications

ApplicationDry or Semi-Dry Machining
Cutter Diameter1/4 in
FinishBalinit X.CEED
Helix Angle45 deg
Length of Cut3/8 in
MaterialSolid Submicron Carbide
Number of Flutes5
Overall Length2 in
Series255RA
Shank Diameter1/4 in
Shank Length1-5/8 in
TypeCenter Cutting Standard Length

Additional Information

Country of OriginGB
