Dixon® DIXV LSS104

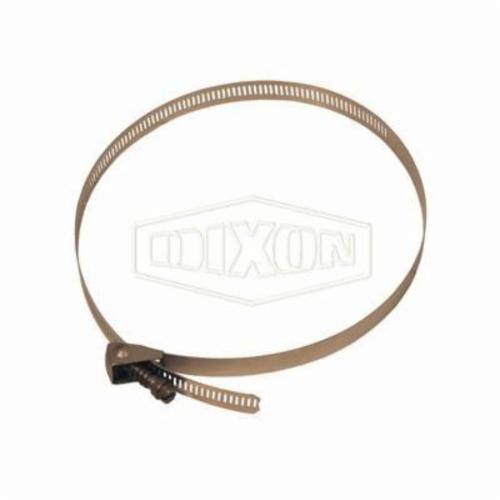

Dixon® LSS104 Quick Release Worm Gear Clamp, 2-7/8 to 7 in Clamp, Stainless Steel Band, 410 Stainless Steel Bolt, Domestic
Dixon® Worm Gear Clamp, Quick Release, Series: LSS, Clamping Range: 2-7/8 to 7 in, 1/2 in Width, 5/16 in Bolt, 50 in-lb, Grade:201, Stainless Steel Band, 410 Stainless Steel Bolt, Domestic
Features
- 5/16 in slotted hex head screw design
- 201 series stainless steel band and housing
- SAE 410 series stainless steel screw
- Sold in package quantities only
- Torque ratings correspond to the torque rating of the screw of the clamp and are not an indication of the working pressure of any hose assembly installed with this clamp
- Warning: this product contains a chemical known to the State of California to cause birth defects or other reproductive harm
- Do not use in connection with drinking water
- Wash hands after handling
Specifications
TypeQuick Release
SeriesLSS
Clamping Range2-7/8 to 7 in
Width1/2 in
Bolt Size5/16 in
Grade201
