Dixon® DIXV AB200

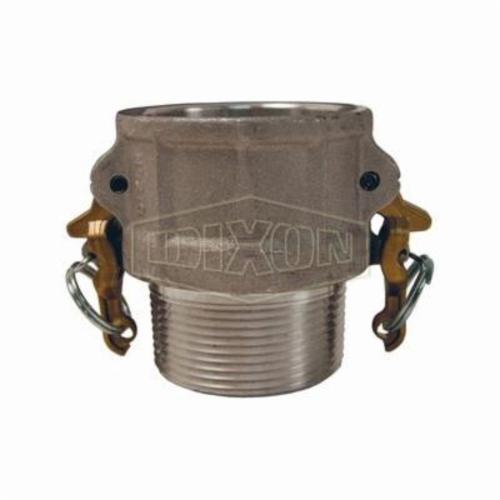

Dixon® AB200 Boss-Lock™ Type B Cam and Groove Coupler, 2 in Nominal, Female Coupler x MNPT End Style, Aluminum, Domestic

UNSPSC:
Manufacturer PN: AB200
$53.44 EA
Factory Order
Estimated to ship in 7 days
QTY:


Dixon® Cam and Groove Coupler, Type B, Series: Boss-Lock™, Coupling Fitting/Connector, 2 in Nominal, Female Coupler x MNPT End Style, 3-9/32 in Length, 250 psi Pressure, Aluminum, Domestic

  • Features

  • 8-5/32 in open across cam arm x 4-5/16 in across safety lugs
  • Buna-N gasket
  • Boss-lock cam arms
  • Supplied with pull ring safety clips
  • Produced to interchange with all product produced to commercial item description A-A-59326D
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70 deg F with a standard seal installed
  • Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
  • Do not use in connection with drinking water
  • Wash hands after handling

Specifications

ApplicationDesigned for use with liquids
TypeType B
SeriesBoss-Lock™
Fitting/Connector TyCoupling
Nominal Size2 in
End StyleFemale Coupler x MNPT
Length3-9/32 in
Pressure Rating250 psi
