GARR GARR 61114

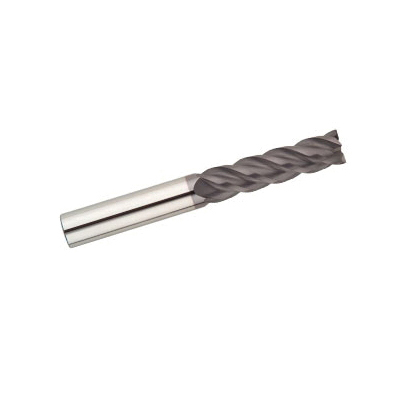

GARR 61114 VRX VS Center Cutting High Performance Standard Length Square End Mill, 2 mm Dia Cutter, 8 mm Length of Cut, 4 Flutes, 3 mm Dia Shank, 38 mm OAL, AlTiN Coated
Invoice description:
Em 2x8locx3x38mm 4fl Altin Hp
Factory Order
GARR Square End Mill, Center Cutting High Performance Standard Length, Series: VRX VS, 2 mm Diameter Cutter, 38 mm Overall Length, 8 mm Length of Cut, 4 Flutes, Spiral Flute, 3 mm Shank Diameter, Right Hand Cutting Direction, 41 deg Helix Angle, Plain Shank, Solid Submicron Grain Carbide, AlTiN Coated
Features
- The standard in high performance milling
- Reduces vibration for more aggressive machining resulting in less cycle times and greater productivity
- Staggered flute geometry
- Recommended for stainless steel, inconel, pH materials, titanium and tool steel
Specifications
ApplicationTrochoidal/Dynamic Milling
Cutter Diameter2 mm
Cutting DirectionRight Hand
FinishAlTiN Coated
Flute TypeSpiral
Helix Angle41 deg
Length of Cut8 mm
MaterialSolid Submicron Grain Carbide
Number of Flutes4
Overall Length38 mm
SeriesVRX VS
Shank Diameter3 mm
Shank TypePlain
TypeCenter Cutting High Performance Standard Length
Additional Information
Standards/ApprovalPROP65: This product can expose you to chemicals including cobalt, which is known to the State of California to cause cancer. For more information go towww.P65Warnings.ca.gov
Country of OriginUS
Specification Sheet
