YG-1 YG1 E9990048TF

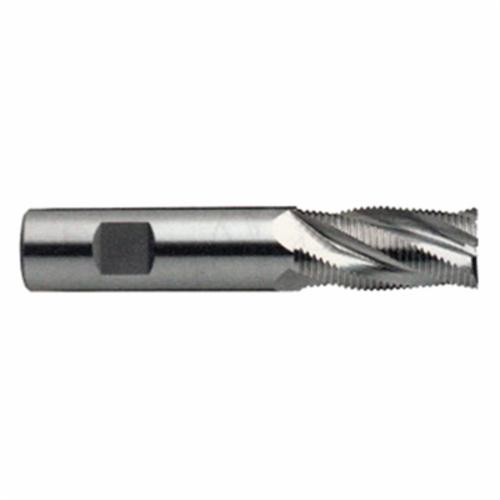

YG-1 E9990048TF E9990 TANK-POWER Center Cutting Regular Length Rougher Roughing End Mill, 3/4 in Dia Cutter, 1-5/8 in Length of Cut, 4 Flutes, 3/4 in Dia Shank, 3-7/8 in OAL, Tank Power/TiAlN Futura Coated

UNSPSC: 23242511
Manufacturer PN: E9990048TF
$76.81 EA
Factory Order
Estimated to ship in 7 days
QTY:


YG-1 Roughing End Mill, Center Cutting Regular Length Rougher, Series: E9990 TANK-POWER, 3/4 in Cutter Dia, 3-7/8 in Overall Length, 1-5/8 in Length of Cut, 4 Flutes, Spiral Flute, 3/4 in Shank Dia, Right Hand Cutting, 30 deg Helix Angle, Flat Shank, 2-1/4 in Shank Length, Premium HSS-PM, Tank Power/TiAlN Futura Coated

  • Features

  • This tank-power rougher is designed for high production metal removal in a wide range of workpiece material
  • It is suitable for a very broad spectrum of materials having up to high tensile strengths
  • In many cases, the milled surfaces are of acceptable quality

Specifications

Cutter Diameter3/4 in
Cutting DirectionRight Hand
FinishTank Power/TiAlN Futura Coated
Flute TypeSpiral
Helix Angle30 deg
Length of Cut1-5/8 in
MaterialPremium HSS-PM
Number of Flutes4
Overall Length3-7/8 in
SeriesE9990 TANK-POWER
Shank Diameter3/4 in
Shank Length2-1/4 in
Shank TypeFlat
TypeCenter Cutting Regular Length Rougher
