YG-1 YG1 DX517012

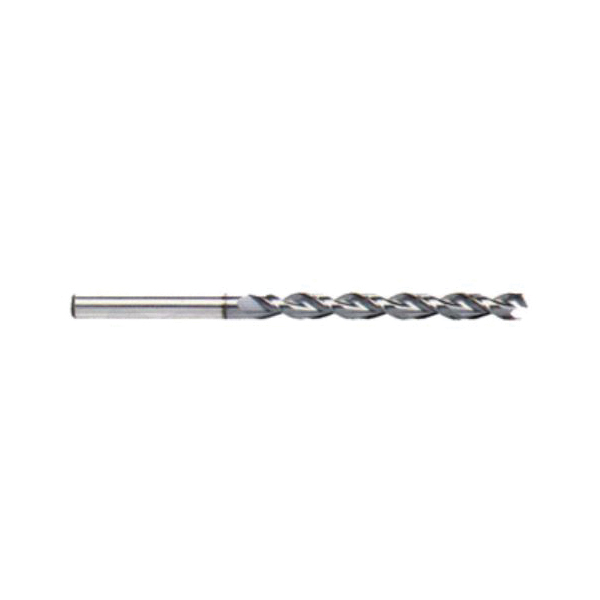

YG-1 DX517012 Taper Length Drill, 3/16 in Drill - Fraction, 0.1875 in Drill - Decimal Inch, 5-3/4 in OAL, HSS-Co 5, TiCN Coated

Invoice description: Dx517012 Taper Length Dr Ill 3/16 In Dia X 5-

UNSPSC: 23241639
Manufacturer PN: DX517012
$21.10 EA
Factory Order
Estimated to ship in 14 days
QTY:


YG-1 Taper Length Drill, Series: DX517, 3/16 in Drill Size - Fraction, 0.1875 in Drill Size - Decimal Inch, 5-3/4 in Overall Length, 3-3/8 in Cutting Depth, Parabolic/Spiral Flute, 3-3/8 in Flute Length, Straight Shank, 130 deg Point, Split Point, Right Hand Cutting, HSS-Co 5 Cutting Edge, HSS-Co 5, TiCN Coated, Applicable Materials: Carbon Steel, Alloy Steel, Cast Iron, Aluminum and Mild Steel

  • Features

  • Improved chip removal in most materials

Specifications

ApplicationFor deep drilling applications
Applicable MaterialsCarbon Steel, Alloy Steel, Cast Iron, Aluminum and Mild Steel
Cutting Depth3-3/8 in
Cutting DirectionRight Hand
Cutting Edge MaterialHSS-Co 5
Drill Size - Decimal Inch0.1875 in
Drill Size - Fraction3/16 in
FinishTiCN Coated
Flute Length3-3/8 in
Flute TypeParabolic/Spiral
MaterialHSS-Co 5
Overall Length5-3/4 in
Point Angle130 deg
Point TypeSplit
SeriesDX517
Shank TypeStraight

Additional Information

Standards/ApprovalANSI Specified
