YG-1 YG1 DPP447016F

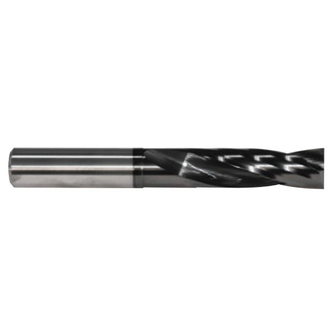

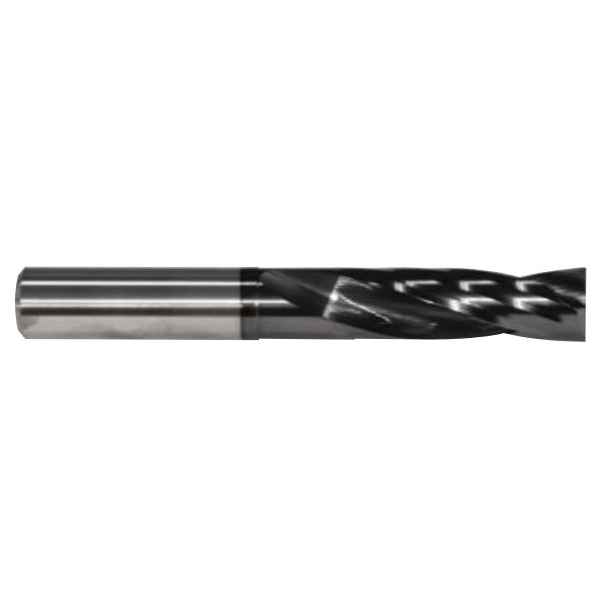

YG-1 DPP447016F Flat Bottom Short Length Dream Drill, 6.35 mm Drill - Metric, 0.25 in Drill - Decimal Inch, Micrograin Carbide, X-Coated
Invoice description:
Dpp447016f 1/4" Flat Bottom D
In stock
(8)
YG-1 Short Length Dream Drill, Flat Bottom, Series: DPP447, Metric, 6.35 mm Drill - Metric, 0.25 in Drill - Decimal Inch, 70 mm Overall Length, 2XD Cutting Depth, 2 Flutes, Spiral Flute, 30 mm Flute Length, 8 mm Shank, Straight Shank, 180 deg Point, Right Hand Cutting Direction, Micrograin Carbide Cutting Edge, Micrograin Carbide, X-Coated, Applicable Materials: Alloy Steel, Cast Iron, Carbon Steel and Pre-Hardened Steel
Features
- 180 deg point angle enables drilling of flat, inclined and curved surfaces
- Optimized flute shape for excellent chip evacuation
- High strength cutting edge to improve tool life and versatility drilling
- For through holes, minimized burrs at entrance and exit when drilling thin plate
- Without through coolant
Specifications
ApplicationFor drilling holes on various angled surfaces and variety of drilling applications
Applicable MaterialsAlloy Steel, Cast Iron, Carbon Steel and Pre-Hardened Steel
Cutting Depth2XD
Cutting DirectionRight Hand
Cutting Edge MaterialMicrograin Carbide
Drill Diameter Measurement SystemMetric
Drill Size - Decimal Inch0.25 in
Drill Size - Metric6.35 mm
FinishX-Coated
Flute Length30 mm
Flute TypeSpiral
MaterialMicrograin Carbide
Number of Flutes2
Overall Length70 mm
Point Angle180 deg
SeriesDPP447
Shank Size8 mm
Shank TypeStraight
TypeFlat Bottom
