YG-1 YG1 DN516126

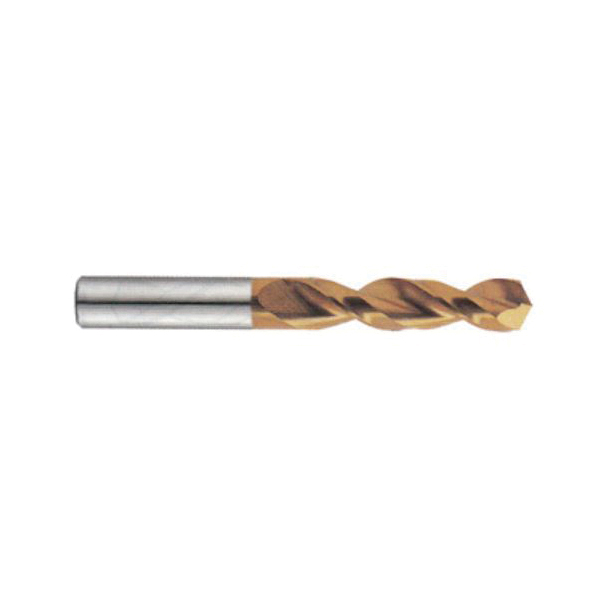

YG-1 DN516126 Screw Machine Drill, Z Drill - Letter, 0.413 in Drill - Decimal Inch, M35 HSS-Co 5, TiN Coated
Invoice description:
Dn516126 Screw Machine D Ril L Z 3-3/8 In L M
Factory Order
YG-1 Screw Machine Drill, Series: DN516, Imperial, Z Drill - Letter, 0.413 in Drill - Decimal Inch, 3-3/8 in Overall Length, 2 in Cutting Depth, Parabolic/Right Spiral Flute, 2 in Flute Length, 13/32 in Shank, Straight Shank, 130 deg Point, Split Point, Right Hand Cutting Direction, M35 HSS-Co 5 Cutting Edge, M35 HSS-Co 5, TiN Coated, Applicable Materials: Carbon Steel, Alloy Steel, Cast Iron, Aluminum, Stainless Steel, Titanium and Mild Steel
Features
- Improved chip removal in most materials, especially in deep drilling applications
Specifications
ApplicationImproved Chip Removal in Most Materials, Especially in Deep Drilling applications
Applicable MaterialsCarbon Steel, Alloy Steel, Cast Iron, Aluminum, Stainless Steel, Titanium and Mild Steel
Cutting Depth2 in
Cutting DirectionRight Hand
Cutting Edge MaterialM35 HSS-Co 5
Drill Diameter Measurement SystemImperial
Drill Size - Decimal Inch0.413 in
Drill Size - LetterZ
FinishTiN Coated
Flute Length2 in
Flute TypeParabolic/Right Spiral
MaterialM35 HSS-Co 5
Overall Length3-3/8 in
Point Angle130 deg
Point TypeSplit
SeriesDN516
Shank Size13/32 in
Shank TypeStraight
Additional Information
Standards/ApprovalANSI Specified
