YG-1 YG1 DN514022

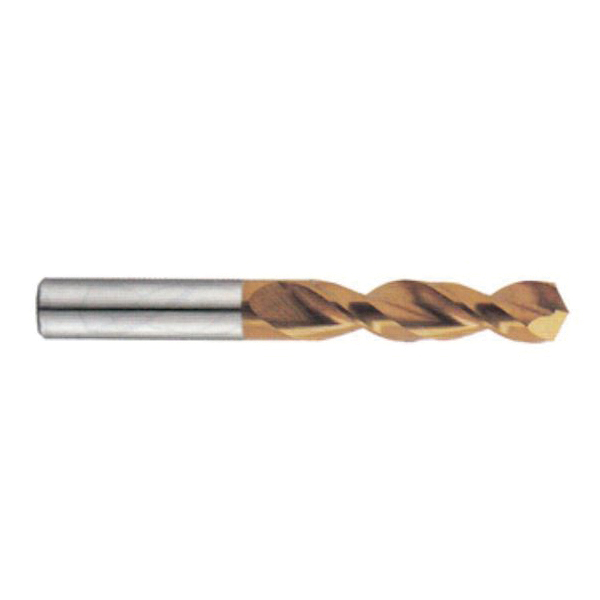

YG-1 DN514022 Screw Machine Drill, 11/32 in Drill - Fraction, 0.3438 in Drill - Decimal Inch, M35 HSS-Co 5, TiN Coated
Invoice description:
Dn514022 Screw Machine D Ril L 11/32 In Dia X
Factory Order
YG-1 Screw Machine Drill, Series: DN514, Imperial, 11/32 in Drill - Fraction, 0.3438 in Drill - Decimal Inch, 3 in Overall Length, 1-11/16 in Cutting Depth, Parabolic/Right Spiral Flute, 1-11/16 in Flute Length, 11/32 in Shank, Straight Shank, 130 deg Point, Split Point, Right Hand Cutting Direction, M35 HSS-Co 5 Cutting Edge, M35 HSS-Co 5, TiN Coated, Applicable Materials: Aluminum, Alloy Steel, Cast Iron and Carbon Steel
Features
- Improved chip removal in most materials, especially in deep drilling applications
Specifications
ApplicationImproved Chip Removal in Most Materials, Especially in Deep Drilling Applications
Applicable MaterialsAluminum, Alloy Steel, Cast Iron and Carbon Steel
Cutting Depth1-11/16 in
Cutting DirectionRight Hand
Cutting Edge MaterialM35 HSS-Co 5
Drill Diameter Measurement SystemImperial
Drill Size - Decimal Inch0.3438 in
Drill Size - Fraction11/32 in
FinishTiN Coated
Flute Length1-11/16 in
Flute TypeParabolic/Right Spiral
MaterialM35 HSS-Co 5
Overall Length3 in
Point Angle130 deg
Point TypeSplit
SeriesDN514
Shank Size11/32 in
Shank TypeStraight
Additional Information
Standards/ApprovalANSI Specified
