YG-1 YG1 DL603215

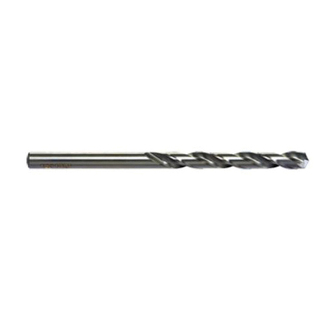

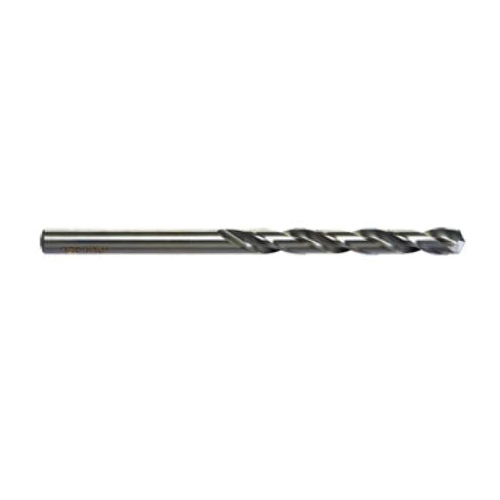

YG-1 DL603215 Aircraft Extension Drill, #42 Drill - Wire, 0.0935 in Drill - Decimal Inch, 135 deg Point, HSS-Co 5
Invoice description:
Dl603215 Aircraft Extens Ion Drill #42 6 In L
Factory Order
YG-1 Aircraft Extension Drill, Series: DL603, #42 Drill Size - Wire, 0.0935 in Drill Size - Decimal Inch, 6 in Overall Length, 1-1/4 in Cutting Depth, Parabolic/Spiral Flute, 1-1/4 in Flute Length, 11/128 in Shank, Straight Shank, 135 deg Point, Split Point, Right Hand Cutting, HSS-Co 5 Cutting Edge, HSS-Co 5, Steam Oxide, Applicable Materials: Alloy Steel, Aluminum, Bronze, Carbon Steel, Cast Iron, Mild Steel, Prehardened Steel, Stainless Steel and Titanium
Features
- Improved chip removal in most materials
Specifications
ApplicationFor deep drilling applications
Applicable MaterialsAlloy Steel, Aluminum, Bronze, Carbon Steel, Cast Iron, Mild Steel, Prehardened Steel, Stainless Steel and Titanium
Cutting Depth1-1/4 in
Cutting DirectionRight Hand
Cutting Edge MaterialHSS-Co 5
Drill Size - Decimal Inch0.0935 in
Drill Size - Wire#42
FinishSteam Oxide
Flute Length1-1/4 in
Flute TypeParabolic/Spiral
MaterialHSS-Co 5
Overall Length6 in
Point Angle135 deg
Point TypeSplit
SeriesDL603
Shank Size11/128 in
Shank TypeStraight
