YG-1 YG1 DH451064

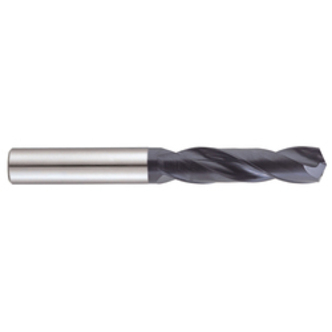

YG-1 DH451064 DH451 INOX Short Length Dream Drill With Through Coolant, 6.4 mm Drill - Metric, 0.2519 in Drill - Decimal Inch, Micrograin Solid Carbide, TiAlN Coated
Invoice description:
Carbide Dream Drill Inox 3xd W/coolant Holes
In stock
(123)
YG-1 Dream Drill, Short Length, Series: DH451 INOX, Metric, 6.4 mm Drill - Metric, 0.2519 in Drill - Decimal Inch, 79 mm Overall Length, 3XD Cutting Depth, 2 Flutes, Spiral Flute, 34 mm Flute Length, 8 mm Shank, Straight Shank, 140 deg Point, Right Hand Cutting Direction, Micrograin Solid Carbide Cutting Edge, Micrograin Solid Carbide, TiAlN Coated, Applicable Materials: Alloy Steel, Carbon Steel, Pre-Hardened Steel and Stainless Steel
Features
- Special flute shape and geometry suitable for machining stainless steel
- Excellent chip evacuation from better surface treatment
- Point R-thinning achieves superior centering and chip curling
- TiAlN coating for better surface finishes and longer tool life
Specifications
Applicable MaterialsAlloy Steel, Carbon Steel, Pre-Hardened Steel and Stainless Steel
Cutting Depth3XD
Cutting DirectionRight Hand
Cutting Edge MaterialMicrograin Solid Carbide
Drill Diameter Measurement SystemMetric
Drill Size - Decimal Inch0.2519 in
Drill Size - Metric6.4 mm
FinishTiAlN Coated
Flute Length34 mm
Flute TypeSpiral
MaterialMicrograin Solid Carbide
Number of Flutes2
Overall Length79 mm
Point Angle140 deg
SeriesDH451 INOX
Shank Size8 mm
Shank TypeStraight
TypeShort Length
Additional Information
Standards/ApprovalDIN 6537
