YG-1 YG1 D4107997

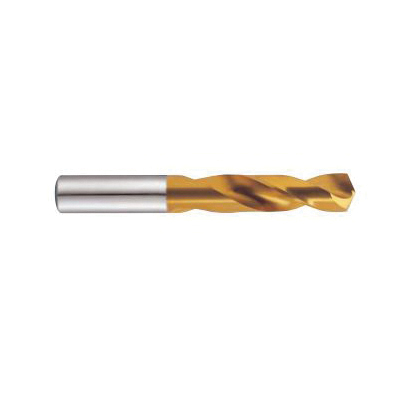

YG-1 D4107997 Screw Machine Drill, 9.75 mm Drill - Metric, 0.3839 in Drill - Decimal Inch, M42 HSS-Co 8, TiN Coated
Invoice description:
D4107997 Metric Stub Len Gth Screw Machine Dr
Factory Order
YG-1 Screw Machine Drill, Series: D4107, Metric/Imperial, 9.75 mm Drill - Metric, 0.3839 in Drill - Decimal Inch, 89 mm Overall Length, 43 mm Cutting Depth, Right Spiral Flute, 43 mm Flute Length, 9.75 mm Shank, Straight Shank, 135 deg Point, Split Point, Right Hand Cutting Direction, M42 HSS-Co 8 Cutting Edge, M42 HSS-Co 8, TiN Coated, Applicable Materials: Aluminum, Alloy Steel, Carbon Steel, Cast Iron, Mild Steel, Stainless Steel and Titanium
Features
- Right hand spiral, helix flute geometry
Specifications
ApplicationFor drilling in thin materials with portable drills
Applicable MaterialsAluminum, Alloy Steel, Carbon Steel, Cast Iron, Mild Steel, Stainless Steel and Titanium
Cutting Depth43 mm
Cutting DirectionRight Hand
Cutting Edge MaterialM42 HSS-Co 8
Drill Diameter Measurement SystemMetric/Imperial
Drill Size - Decimal Inch0.3839 in
Drill Size - Metric9.75 mm
FinishTiN Coated
Flute Length43 mm
Flute TypeRight Spiral
MaterialM42 HSS-Co 8
Overall Length89 mm
Point Angle135 deg
Point TypeSplit
SeriesD4107
Shank Size9.75 mm
Shank TypeStraight
Additional Information
Standards/ApprovalDIN 1897
Specification Sheet
