YG-1 YG1 D2147201

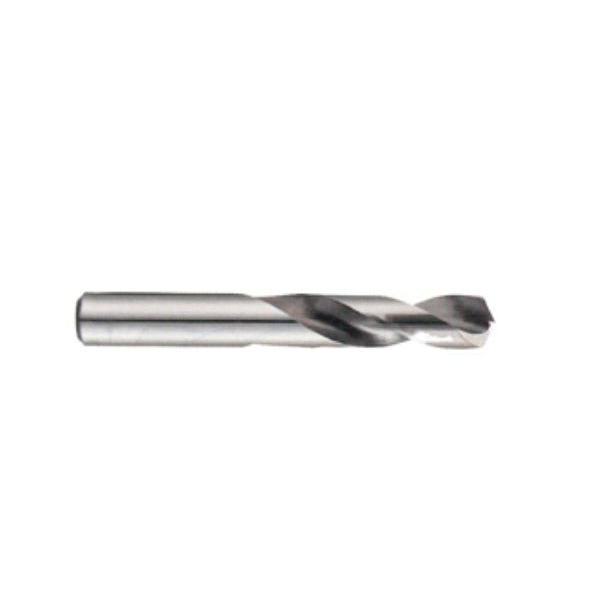

YG-1 D2147201 Screw Machine Drill, A Drill - Letter, 0.234 in Drill - Decimal Inch, M42 HSS-Co 8, Bright
Invoice description:
D2147201 Screw Machine D Ril L A 2-7/16 In L
Factory Order
YG-1 Screw Machine Drill, Series: D2147, Imperial, A Drill - Letter, 0.234 in Drill - Decimal Inch, 2-7/16 in Overall Length, 1-5/16 in Cutting Depth, Right Spiral Flute, 1-5/16 in Flute Length, 29/128 in Shank, Straight Shank, 135 deg Point, Split Point, Right Hand Cutting Direction, M42 HSS-Co 8 Cutting Edge, M42 HSS-Co 8, Bright, Applicable Materials: Alloyed/Non-Alloyed, Cast Steel, Gray Cast Iron, Graphite, Malleable Cast Iron and Steel
Features
- Right hand spiral, wider flute geometry
Specifications
ApplicationFor drilling applications
Applicable MaterialsAlloyed/Non-Alloyed, Cast Steel, Gray Cast Iron, Graphite, Malleable Cast Iron and Steel
Cutting Depth1-5/16 in
Cutting DirectionRight Hand
Cutting Edge MaterialM42 HSS-Co 8
Drill Diameter Measurement SystemImperial
Drill Size - Decimal Inch0.234 in
Drill Size - LetterA
FinishBright
Flute Length1-5/16 in
Flute TypeRight Spiral
MaterialM42 HSS-Co 8
Overall Length2-7/16 in
Point Angle135 deg
Point TypeSplit
SeriesD2147
Shank Size29/128 in
Shank TypeStraight
Additional Information
Standards/ApprovalANSI Specified
