Wright Tool WTF 48-11MM

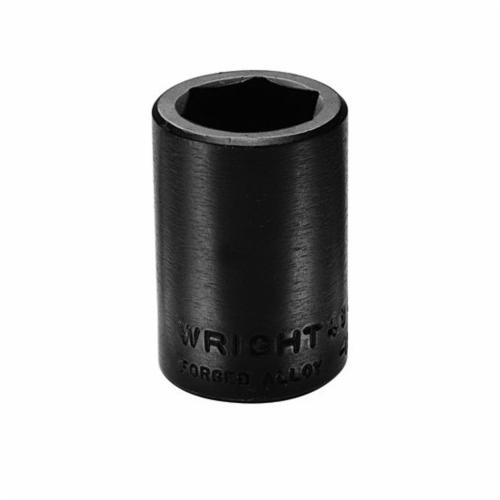

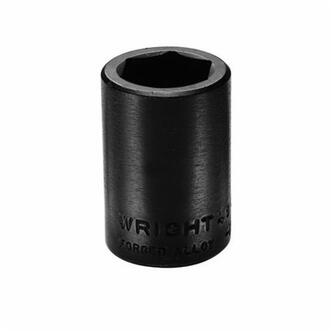

Wright Tool 48-11MM Shape I Standard Length Socket, 1/2 in Square Drive, 11 mm, 6 Points
Invoice description:
1/2" Dr. 6 Pt. Std. Metr I 11mm
UPC: 076799728029
UNSPSC:
27112828
Manufacturer PN: 48-11MM
$8.56 EA
Factory OrderEstimated to ship in 14 days
Wright Tool Socket, Shape I Standard Length, Series, Yes Impact Rated, Measurement System, Square Drive, Drive Size, in 1/2, Socket Size, mm 11, 38.1 Overall Length, Opening Depth mm, mm 7.14, 23.75 Drive End Width, Socket End Width mm, mm 18.16, Pin Locking, Number of Points, Bolt Clearance Depth, Alloy Steel, Finish
Features
- Improved torque load capabilities of every fastener
- Stress is distributed over a much larger area
- Leverage is improved, eliminating rounding and increasing strength
- Tool-to-fastener contact area is ten times greater than with a conventional design
Specifications
Drive End Width23.75 mm
Drive Size1/2 in
Drive TypeSquare
FinishBlack Oxide
Impact RatedYes
Locking TypePin
MaterialAlloy Steel
Measurement SystemMetric
Number of Points6
Opening Depth7.14 mm
Overall Length38.1 mm
Socket End Width18.16 mm
Socket Size11 mm
TypeShape I Standard Length
Additional Information
Standards/ApprovalASME B107.110
Country of OriginUS
