Wilton WILT 22004

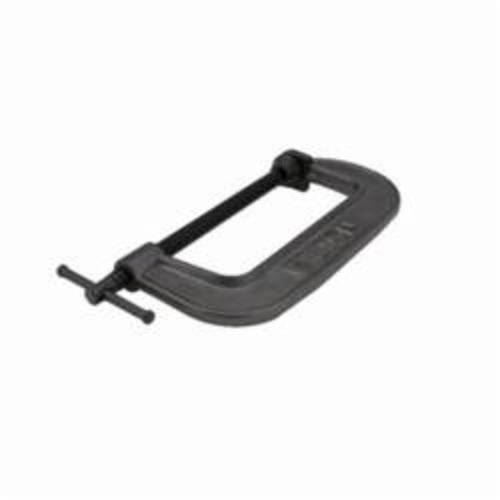

Wilton WL9-22004 540A Light Duty Standard Depth Throat C-Clamp, 2-1/2 in D Throat, 0 to 5 in Clamping, 5/8 in Screw

UPC: 019907220046
UNSPSC: 27112120
Manufacturer PN: WL9-22004
$55.62 EA
Factory Order
Estimated to ship in 14 days
QTY:


Wilton, WL9-22004, C-Clamp, Light Duty Standard Depth Throat, Series: 540A, 2-1/2 in Throat Depth, 0 to 5 in Clamping, 5/8 in Screw, 2250 lb Clamping, Ductile Iron Body, 10.2 in L x 4.6 in W x 1.3 in H Dimensions

  • Features

  • Frames made from high strength ductile iron castings
  • Sliding pin (vise type) handle, single ACME thread rolled spindle and oscillating ball and socket tip
  • Wiltons heaviest-duty carriage clamp available
  • Standard c-clamps are used for holding and aligning together multiple workpieces

Specifications

ApplicationHome Craftsman, Light Industrial, Repair and Woodworking
Body MaterialDuctile Iron
Clamping Capacity0 to 5 in
Clamping Pressure2250 lb
Dimensions10.2 in L x 4.6 in W x 1.3 in H
Screw Size5/8 in
Series540A
Throat Depth2-1/2 in
TypeLight Duty Standard Depth Throat
