Weller WEL PL138

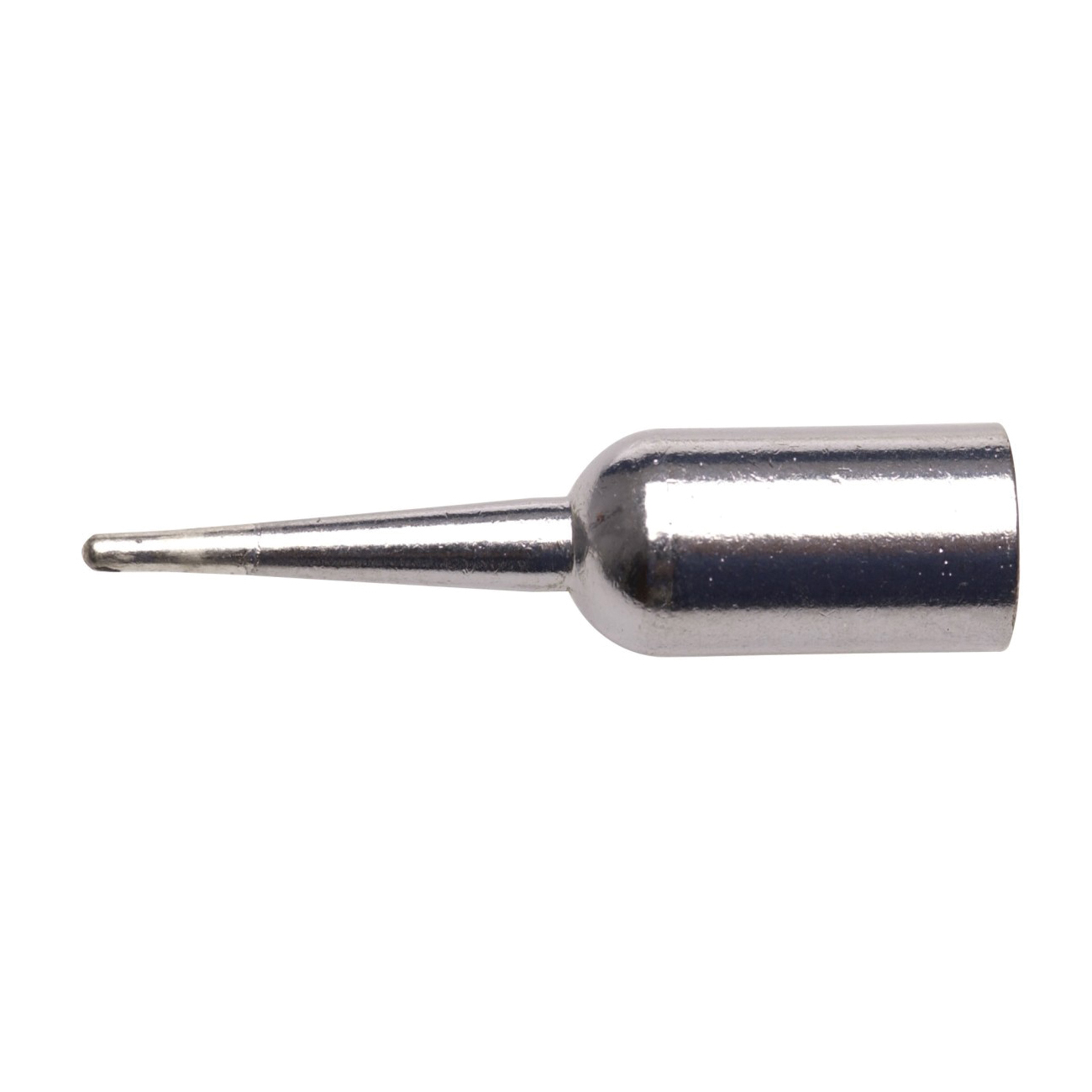

Weller PL138 PL Series Tapered Needle Thread-On Soldering Tip, For Use With 360, 362, 37UG, 537S, 1237S and 4037S Heaters, Solid Copper, Iron Plated/Nickel Chrome

Invoice description: Tip, 1/4 Taper Needle

UPC: 037103036841
UNSPSC: 23271809
Manufacturer PN: PL138
$12.08 EA
Factory Order
Estimated to ship in 14 days
QTY:


Weller Soldering Tip, Tapered Needle Thread-On, Series: PL Series, For Use With: 360, 362, 37UG, 537S, 1237S and 4037S Heaters, Solid Copper, Iron Plated/Nickel Chrome Finish, 16.76 mm L x 1.27 mm W x 3.3 mm THK Dimensions

  • Features

  • Solid copper, plated with iron all over, precision electronic
  • Nickel and chromium behind the working surface
  • Designed to provide maximum heat transfer from the heater to the tip
  • Fits 1/4 in thread-on SL standard and DI line heaters
  • Lead free

Specifications

Dimensions16.76 mm L x 1.27 mm W x 3.3 mm THK
FinishIron Plated/Nickel Chrome
MaterialSolid Copper
SeriesPL Series
Suitable For Use With360, 362, 37UG, 537S, 1237S and 4037S Heaters
TypeTapered Needle Thread-On

Additional Information

Standards/ApprovalRoHS Compliant
Country of OriginJP
