Weller WEL PL114

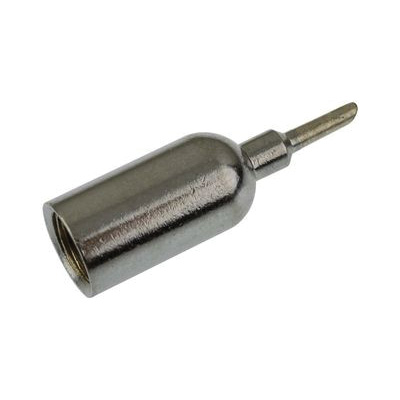

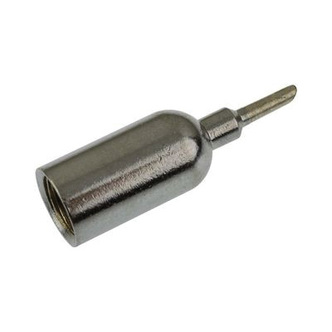

Weller PL114 PL Series Micro Spade Soldering Tip, For Use With 360, 362, 37UG, 537S, 1237S and 4037S SL Heaters, 10.4 mm L x 1.27 mm W x 3.3 mm THK, Iron, Nickel/Chromium/Solid Copper Plated

Invoice description: Spade Tip, Micro, Plated

UPC: 037103036780
UNSPSC: 23271809
Manufacturer PN: PL114
$12.22 EA
Factory Order
Estimated to ship in 14 days
QTY:


Weller Soldering Tip, Micro Spade, Series: PL Series, For Use With: 360, 362, 37UG, 537S, 1237S and 4037S SL Heaters, Specifications: 10.4 mm L x 1.27 mm W x 3.3 mm THK, Iron, Nickel/Chromium/Solid Copper Plated Finish

  • Features

  • Thread-on and thread in precision tips for standard and DI line heaters
  • Solid copper, plated with iron all over, precision electronic
  • Nickel and chromium behind the working surface
  • Thread-on tips can be used with heaters 360, 362, 37UG, 537S, 1237S and 4037S
  • Thread in tips can be used with heaters 535S, 1235S and 4035S
  • Designed to provide maximum heat transfer from the heater to the tip
  • Fits tool with 1/4 in thread-on SL heaters

Specifications

ApplicationFor modular heater
FinishNickel/Chromium/Solid Copper Plated
MaterialIron
SeriesPL Series
Specifications10.4 mm L x 1.27 mm W x 3.3 mm THK
Suitable For Use With360, 362, 37UG, 537S, 1237S and 4037S SL Heaters
TypeMicro Spade

Additional Information

Warranty1 Year
Standards/ApprovalRoHS Compliant
Country of OriginJP
