Tiger WEI 58317

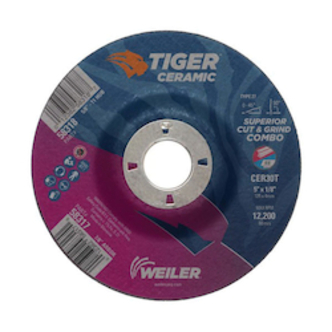

Tiger 58317 Combination Long Life Performance Line Superior Life and Cut Depressed Center Combo Wheel, 5 in Dia x 1/8 in THK, 7/8 in Center Hole, 30 Grit, Ceramic Alumina Abrasive
Invoice description:
5 X 1/8 Tiger Ceramic Ty Pe 27 Cut/grind Comb
Factory Order
Tiger Depressed Center Combo Wheel, Combination Long Life Performance Line Superior Life and Cut, 5 in Wheel Diameter, 1/8 in Wheel Thickness, 7/8 in Center Hole, Arbor Connector, 30 Grit, Medium Grade, Ceramic Alumina Abrasive, Wheel Type Number: Type 27, 12200 rpm Maximum, Resin Bond, Applicable Materials: Tool Steel, Inconel, High Nickel Alloy, Titanium, Armored Steel, Stainless Steel and Hard-to-Cut Metals, Wheel Hardness: T, Yes Reinforced, Specifications Met: ANSI B7.1-2010
Features
- Self-sharpening ceramic alumina grain delivers a superior combination of life and cut rate
- Self-sharpening and cool cutting, ceramic grain removes material effortlessly while a hard bond keeps working longer
- Performance line - Weiler Abrasives Tiger wheels deliver the right combination of performance and value
- This versatile line-up offers a long life solution for all your general purpose applications
- Type 27 - added clearance when working at a constrained angle
Specifications
ApplicationFor use on grinders
Abrasive MaterialCeramic Alumina
Applicable MaterialsTool Steel, Inconel, High Nickel Alloy, Titanium, Armored Steel, Stainless Steel and Hard-to-Cut Metals
Bond TypeResin
Center Hole Size7/8 in
Connector TypeArbor
GradeMedium
Grit30
Maximum Speed12200 rpm
ReinforcedYes
Specifications MetANSI B7.1-2010
TypeCombination Long Life Performance Line Superior Life and Cut
Wheel Diameter5 in
Wheel HardnessT
Wheel Thickness1/8 in
Wheel Type NumberType 27
Additional Information
Standards/ApprovalANSI B7.1-2010
Country of OriginSI
