Tiger WEI 58307

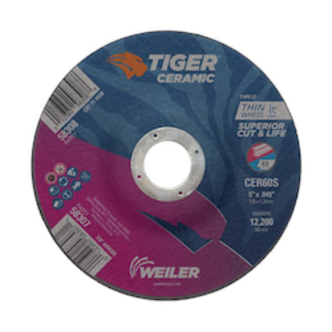

Tiger 58307 Performance Line Superior Life and Cut Depressed Center Cutting Wheel, 5 in Dia x 0.045 in THK, 7/8 in Center Hole, 60 Grit, Ceramic Alumina Abrasive
Invoice description:
5" X .045" Tiger Ceramic Type 27 Cutting Whe
Factory Order
Tiger Depressed Center Cutting Wheel, Performance Line Superior Life and Cut, 5 in Wheel Diameter, 0.045 in Wheel Thickness, 7/8 in Center Hole, Arbor Connector, 60 Grit, Medium Grade, Ceramic Alumina Abrasive, Wheel Type Number: Type 27, 12200 rpm Maximum, Resin Bond, Applicable Materials: Tool Steel, Inconel, High Nickel Alloy, Titanium, Armored Steel, Stainless Steel and Hard-to-Cut Metals, Wheel Hardness: S, Specifications Met: ANSI B7.1-2010
Features
- Self-sharpening ceramic alumina grain delivers a superior combination of life and cut rate
- Dual reinforcement provides added strength for aggressive cutting
- Smooth outer layer on performance cutting wheels reduces friction that translates to an effortless cut and less kickback during operation
- Performance line - Weiler Abrasives Tiger wheels deliver the right combination of performance and value
- This versatile line-up offers a long life solution for all your general purpose applications
- Type 27 - added clearance when working at a constrained angle
- For tubes, bar stock and large cross sections
Specifications
ApplicationFor use on grinders
Abrasive MaterialCeramic Alumina
Applicable MaterialsTool Steel, Inconel, High Nickel Alloy, Titanium, Armored Steel, Stainless Steel and Hard-to-Cut Metals
Bond TypeResin
Center Hole Size7/8 in
Connector TypeArbor
GradeMedium
Grit60
Maximum Speed12200 rpm
Specifications MetANSI B7.1-2010
TypePerformance Line Superior Life and Cut
Wheel Diameter5 in
Wheel HardnessS
Wheel Thickness0.045 in
Wheel Type NumberType 27
Additional Information
Standards/ApprovalANSI B7.1-2010
Country of OriginSI
