Tiger WEI 58123

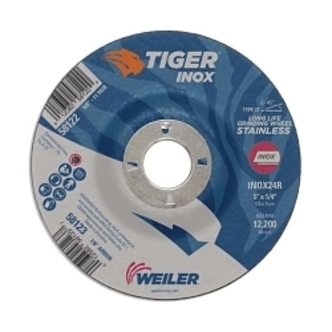

Tiger INOX 58123 Contaminant-Free Performance Line Depressed Center Grinding Wheel, 5 in Dia x 1/4 in THK, 7/8 in Center Hole, 24 Grit, White Aluminum Oxide Abrasive
Invoice description:
5" X 1/4" Tiger Inox Typ E 27 Grinding Wheel,
Factory Order
Tiger INOX Depressed Center Grinding Wheel, Contaminant-Free Performance Line, 5 in Wheel Diameter, 1/4 in Wheel Thickness, 7/8 in Center Hole, Arbor Connector, 24 Grit, Coarse Grade, White Aluminum Oxide Abrasive, Wheel Type Number: Type 27, 12200 rpm Maximum, Resin Bond, Applicable Materials: Stainless Steel and Harder Steel Grades, Wheel Hardness: R, Yes Reinforced, Specifications Met: ANSI B7.1-2010
Features
- Type 27 grinding wheels are designed with fiberglass cut back from the edge to provide instant aggressive grinding on new wheels
- INOX wheels are specifically designed for high performance on stainless steel
- These wheels incorporate a contaminant-free bond that delivers a worry-free solution for stainless steel applications
- Performance line - Weiler Abrasives Tiger wheels deliver the right combination of performance and value
- This versatile line-up offers a long life solution for all your general purpose applications
- Type 27 - flat profile with depressed center allows for a wide range of grinding angles (0 to 45)
Specifications
ApplicationHeavy Stock Removal, Scale Removal, Weld Removal, Weld Blending, Edge Beveling, Torch-Cut Softening, Cutting and Parting, Notching and Rough Grinding
Abrasive MaterialWhite Aluminum Oxide
Applicable MaterialsStainless Steel and Harder Steel Grades
Bond TypeResin
Center Hole Size7/8 in
Connector TypeArbor
GradeCoarse
Grit24
Maximum Speed12200 rpm
ReinforcedYes
Specifications MetANSI B7.1-2010
TypeContaminant-Free Performance Line
Wheel Diameter5 in
Wheel HardnessR
Wheel Thickness1/4 in
Wheel Type NumberType 27
Additional Information
Standards/ApprovalANSI B7.1-2010
Country of OriginSI
