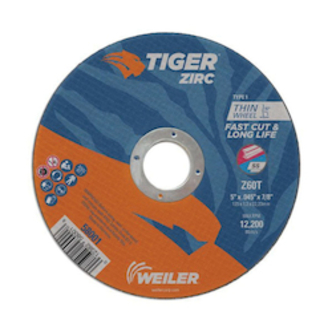

Tiger WEI 58001

Tiger 58001 Fast Cut and Long Life Flat Performance Line Small Thin Cut-Off Wheel, 5 in Dia x 0.045 in THK, 7/8 in Center Hole, Z60T Grit, Zirconia Alumina Abrasive

Invoice description: 5" X .045" Tiger Zirc Ty Pe 1 Cutting Wheel,

UNSPSC: 31191600
Manufacturer PN: 58001
$3.42 EA
Factory Order
Estimated to ship in 14 days
QTY:


Tiger Cut-Off Wheel, Fast Cut and Long Life Flat Performance Line Small Thin, 5 in Wheel Dia, 0.045 in Wheel Thickness, 7/8 in Center Hole, Z60T Grit, Medium Grade, Zirconia Alumina Abrasive, 12200 rpm Maximum, Resin Bond, Applicable Materials: Carbon Steel, Structural Steel, Cast Iron, Steel, Stainless Steel and Metals, Wheel Type Number: Type 1, Wheel Hardness: T, For Use With: Cut-Off Die Grinder, Right Angle Air Die Grinder and Right Angle Grinders, Yes Reinforced, ANSI B7.1-2010 Specifications Met

  • Features

  • High performance wheels leverage a self-sharping zirconia alumina grain that retains a high cut rate throughout the life of the wheel so you get maximum productivity on steel and stainless steel
  • Thin cutting wheels deliver accurate, clean cuts
  • Ideal for general purpose applications in tool rooms and machine shops
  • Dual reinforcement provides added strength for aggressive cutting
  • Smooth outer layer on performance cutting wheels reduces friction that translates to an effortless cut and less kickback during operation
  • Weiler Abrasives Tiger wheels deliver the right combination of performance and value
  • This versatile line up offers a long life solution for all your general purpose applications
  • Flat profile allows for deep cuts
  • For tubes, bar stock and large cross-sections

Specifications

ApplicationCutting and Parting, Notching, Rough Grinding and Weld Removal
Abrasive MaterialZirconia Alumina
Applicable MaterialsCarbon Steel, Structural Steel, Cast Iron, Steel, Stainless Steel and Metals
Bond TypeResin
Center Hole Size7/8 in
GradeMedium
GritZ60T
Maximum Speed12200 rpm
ReinforcedYes
Specifications MetANSI B7.1-2010
Suitable For Use WithCut-Off Die Grinder, Right Angle Air Die Grinder and Right Angle Grinders
TypeFast Cut and Long Life Flat Performance Line Small Thin
Wheel Diameter5 in
Wheel HardnessT
Wheel Thickness0.045 in
Wheel Type NumberType 1

Additional Information

Standards/ApprovalANSI B7.1-2010
Country of OriginSI
