Tiger WEI 57123

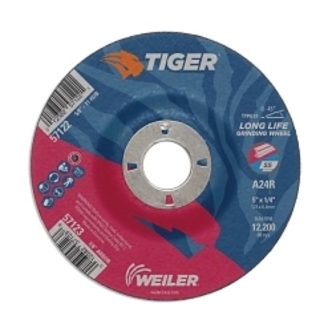

Tiger 57123 Performance Line Depressed Center Grinding Wheel, 5 in Dia x 1/4 in THK, 7/8 in Center Hole, 24 Grit, Premium Aluminum Oxide Abrasive
Invoice description:
5" X 1/4" Tiger Ao Type 27 Grinding Wheel, A
Factory Order
Tiger Depressed Center Grinding Wheel, Performance Line, 5 in Wheel Diameter, 1/4 in Wheel Thickness, 7/8 in Center Hole, Arbor Connector, 24 Grit, Coarse Grade, Premium Aluminum Oxide Abrasive, Wheel Type Number: Type 27, 12200 rpm Maximum, Resin Bond, Applicable Materials: Carbon Steel, Structural Steel, Cast Iron and General Purpose Metals, Wheel Hardness: R, Yes Reinforced, Specifications Met: ANSI B7.1-2010
Features
- Type 27 grinding wheels are designed with fiberglass cut back from the edge to provide instant aggressive grinding on new wheels
- Weiler Abrasives Tiger grinding wheels deliver the right combination of performance and value
- Premium aluminum oxide grains provide an even, sharp, clean cut and a hard bond extends life and maximizes performance
- Performance line - Weiler Abrasives Tiger wheels deliver the right combination of performance and value
- This versatile line-up offers a long life solution for all your general purpose applications
- Type 27 - flat profile with depressed center allows for a wide range of grinding angles (0 to 45)
- Long grinding life
Specifications
ApplicationGrinding, Heavy Stock Removal, Scale Removal, Weld Removal, Weld Blending, Grinders, Edge Beveling and Torch-Cut Softening
Abrasive MaterialPremium Aluminum Oxide
Applicable MaterialsCarbon Steel, Structural Steel, Cast Iron and General Purpose Metals
Bond TypeResin
Center Hole Size7/8 in
Connector TypeArbor
GradeCoarse
Grit24
Maximum Speed12200 rpm
ReinforcedYes
Specifications MetANSI B7.1-2010
TypePerformance Line
Wheel Diameter5 in
Wheel HardnessR
Wheel Thickness1/4 in
Wheel Type NumberType 27
Additional Information
Standards/ApprovalANSI B7.1-2010
Country of OriginSI
