Tiger WEI 57043

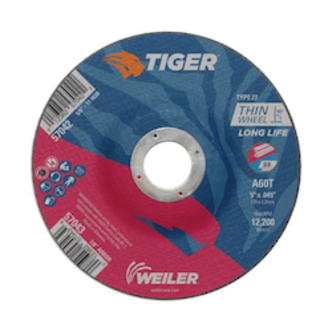

Tiger 57043 Long Life Performance Line Thin Depressed Center Cutting Wheel, 5 in Dia x 0.045 in THK, 7/8 in Center Hole, 60 Grit, Premium Aluminum Oxide Abrasive
Invoice description:
5" X .045" Tiger Ao Type 27 Cutting Wheel, A
Factory Order
Tiger Depressed Center Cutting Wheel, Long Life Performance Line Thin, 5 in Wheel Diameter, 0.045 in Wheel Thickness, 7/8 in Center Hole, Arbor Connector, 60 Grit, Medium Grade, Premium Aluminum Oxide Abrasive, Wheel Type Number: Type 27, 12200 rpm Maximum, Resin Bond, Applicable Materials: Carbon Steel, Structural Steel, Cast Iron and General Purpose Metals, Wheel Hardness: T, Yes Reinforced, Specifications Met: ANSI B7.1-2010
Features
- Premium aluminum oxide grains provide an even, sharp, clean cut and a hard bond extends life and maximizes performance
- Thin cutting wheels deliver accurate, clean cuts
- Ideal for general purpose applications in toolrooms and machine shops
- Dual reinforcement provides added strength for aggressive cutting
- Smooth outer layer on performance cutting wheels reduces friction that translates to an effortless cut and less kickback during operation
- Performance line - Weiler Abrasives Tiger wheels deliver the right combination of performance and value
- This versatile line-up offers a long life solution for all your general purpose applications
- Type 27 - added clearance when working at a constrained angle
- For tubes, bar stock and large cross sections
Specifications
ApplicationCutting and Parting, Notching, Rough Grinding and Weld Removal
Abrasive MaterialPremium Aluminum Oxide
Applicable MaterialsCarbon Steel, Structural Steel, Cast Iron and General Purpose Metals
Bond TypeResin
Center Hole Size7/8 in
Connector TypeArbor
GradeMedium
Grit60
Maximum Speed12200 rpm
ReinforcedYes
Specifications MetANSI B7.1-2010
TypeLong Life Performance Line Thin
Wheel Diameter5 in
Wheel HardnessT
Wheel Thickness0.045 in
Wheel Type NumberType 27
Additional Information
Standards/ApprovalANSI B7.1-2010
Country of OriginSI
