Irwin Hanson VG 8032

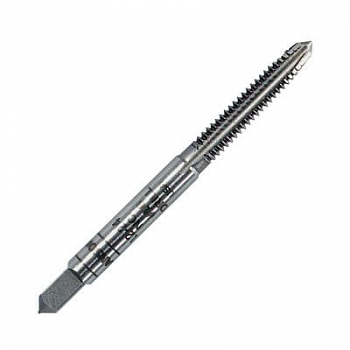

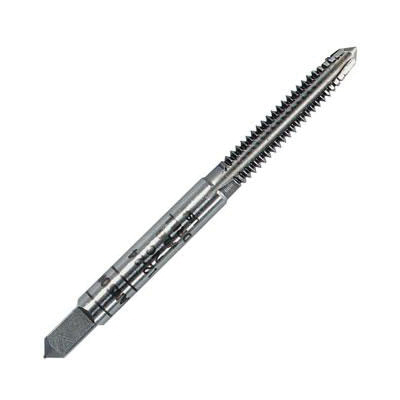

Irwin Hanson 8032 General Purpose Straight Flute Tap, Right Hand Cutting, #12-24 Thread, Plug Chamfer, (4) Flutes, High Carbon Steel
Invoice description:
Plug - 12 - 24 Nc, H.c.s Tap - Carded
UPC: 042526080326
UNSPSC:
23241615
Manufacturer PN: 8032
$3.90 EA
Factory OrderEstimated to ship in 14 days
Irwin Hanson, 8032, General Purpose Straight Flute Tap, Measurement System: Imperial, UNC Thread Standard, #12-24 Thread, Plug Chamfer, 4 Flutes, High Carbon Steel, Class of Fit: 2B, Right Hand Cutting Direction, 0.938 in Thread Length, 2-3/8 in Overall Length, 0.22 in Shank Diameter, Through Coolant (Yes/No): No
Features
- Straight flutes are ground to provide rapid chip removal for efficient threading
- Designed for hand threading work in a variety of materials
- Ideal for routine maintenance, repair work and for rethreading where high accuracy and tolerance thread is not critical
- Ideal for all general purpose threading
- Most common chamfer
Specifications
ApplicationFor general purpose machines and appliances
Chamfer TypePlug
Class of Fit2B
Cutting DirectionRight Hand
MaterialHigh Carbon Steel
Measurement SystemImperial
Number of Flutes4
Overall Length2-3/8 in
Shank Diameter0.22 in
Thread Length0.938 in
Thread Size#12-24
Thread StandardUNC
Through Coolant (Yes/No)No
TypeGeneral Purpose
Additional Information
Country of OriginUS
