Irwin Hanson VG 1834

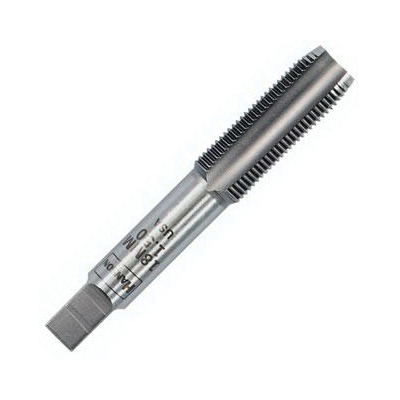

Irwin Hanson 1834ZR Straight Flute Tap, Right Hand Cutting, M8x1.25 Thread, Bottoming Chamfer, 4 Flutes, High Carbon Steel
UPC: 024721053169
UNSPSC:
23241615
Manufacturer PN: 1834ZR
$4.18 EA
Factory Order
Estimated to ship in 14 days
Estimated to ship in 14 days
Irwin Hanson Straight Flute Tap, Measurement System: Metric, M8x1.25, Bottoming Chamfer, 4 Flutes, High Carbon Steel, Class of Fit: 2B, Right Hand Cutting, 38.1 mm Thread Length, 76.2 mm Overall Length, 6.35 mm Shank Dia
Features
- Straight flutes are ground to provide rapid chip removal for efficient threading
- Designed for hand threading work in a variety of materials
- Ideal for threading close to the bottom of blind holes
- Shortest standard chamfer
Specifications
ApplicationFor hand threading work in a variety of materials
Chamfer TypeBottoming
Class of Fit2B
Cutting DirectionRight Hand
MaterialHigh Carbon Steel
Measurement SystemMetric
Number of Flutes4
Overall Length76.2 mm
Shank Diameter6.35 mm
Thread Length38.1 mm
Thread SizeM8x1.25
