Precision Twist Drill UTD 016412

Precision Twist Drill 5999625 2ACO Heavy Duty Jobber Length Drill Bit, 1.2 mm Drill - Metric, 0.0472 in Drill - Decimal Inch, 135 deg Point, HSS-E, Bronze Oxide

Invoice description: 1.20 Mm Jbr Leng Drl 2aco Hss-e Brz Ox 135d R40 Hss Brt 118d Stub Drill Short Ansi 1/16 Inch 5999625

UPC: 086071164124

UNSPSC: 23241606

Manufacturer PN: 5999625

^$2.58 EA

In stock (8)

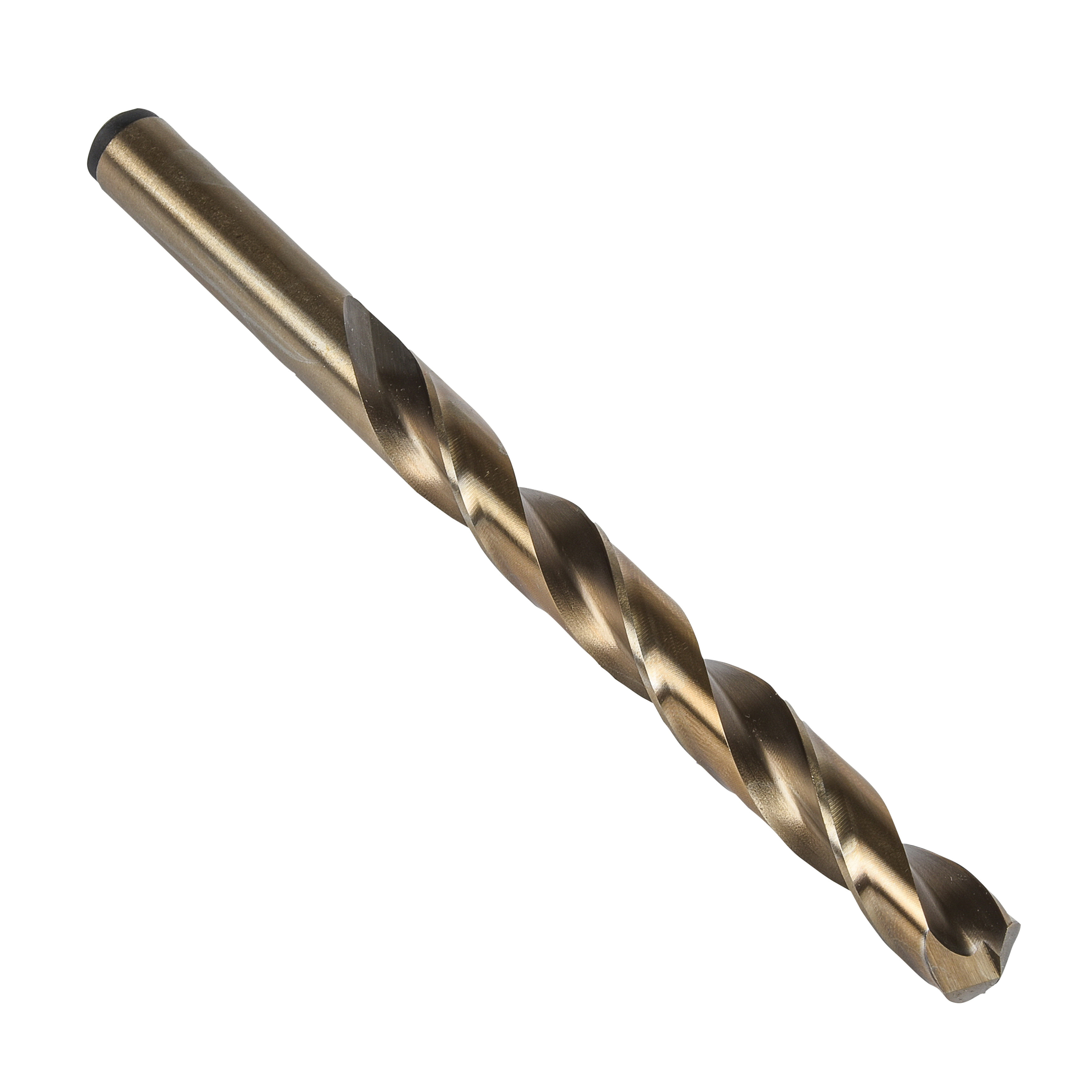

enlarge

Product Overview

Precision Twist Drill Jobber Length Drill Bit, Heavy Duty, Series: 2ACO, Metric/Imperial, 1.2 mm Drill - Metric, 0.0472 in Drill - Decimal Inch, 38 mm Overall Length, 4XD Cutting Depth, 2 Flutes, Spiral Flute, 16 mm Flute Length, 1.2 mm Shank, Straight Shank, 135 deg Point, Split/Self-Centering Point, Right Hand Cutting Direction, HSS-E Cutting Edge, No Through Coolant, HSS-E, Bronze Oxide, Applicable Materials: Magnetic Soft Steel, Structural Steel/Case Carburizing Steel, Plain Carbon Steel, Alloy Steel/Hardened and Tempered Steel, Free Machining Stainless Steel, Austenitic, Ferritic + Austenitic, Martensitic, Lamellar Graphite, Nodular Graphite/Malleable Cast Iron, Unalloyed Titanium, Alloyed Titanium, Unalloyed Nickel, Alloyed Nickel, Copper, Brass, Bronze, High Strength Bronze, Unalloyed Aluminum Magnesium, Alloyed Aluminum and Cermets

Features
Low thrust design self-centering split point for easier penetration
Cobalt base material with bronze oxide for wear resistance and lubricity
For enhanced tool life in ferrous materials

Specifications

Applicable MaterialsMagnetic Soft Steel, Structural Steel/Case Carburizing Steel, Plain Carbon Steel, Alloy Steel/Hardened and Tempered Steel, Free Machining Stainless Steel, Austenitic, Ferritic + Austenitic, Martensitic, Lamellar Graphite, Nodular Graphite/Malleable Cast Iron, Unalloyed Titanium, Alloyed Titanium, Unalloyed Nickel, Alloyed Nickel, Copper, Brass, Bronze, High Strength Bronze, Unalloyed Aluminum Magnesium, Alloyed Aluminum and Cermets

Cutting Depth4XD

Cutting DirectionRight Hand

Cutting Edge MaterialHSS-E

Drill Diameter Measurement SystemMetric/Imperial

Drill Size - Decimal Inch0.0472 in

Drill Size - Metric1.2 mm

FinishBronze Oxide

Flute Length16 mm

Flute TypeSpiral

MaterialHSS-E

Number of Flutes2

Overall Length38 mm

Point Angle135 deg

Point TypeSplit/Self-Centering

Series2ACO

Shank Size1.2 mm

Shank TypeStraight

Through Coolant (Yes/No)No

TypeHeavy Duty

Additional Information

Standards/ApprovalDIN 338|NAS 907 Type J|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov

Country of OriginFR
