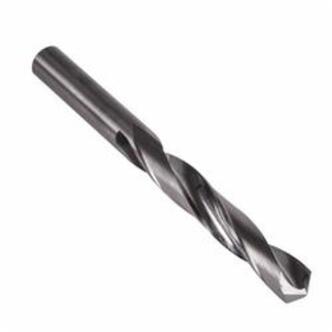

Precision Twist Drill UTD 003531
Precision Twist Drill 6002730 D33F General Purpose Standard Length Jobber Length Drill Bit, 3/32 in Drill - Fraction, 0.0938 in Drill - Decimal Inch, 118 deg Point, Carbide, Bright
Invoice description:
Carbide Standard Lng 2 F L Ptd D33f 3/32 1/pkg
UPC: 086071035318
UNSPSC:
23241605
Manufacturer PN: 6002730
$18.24 EA
Factory OrderEstimated to ship in 14 days
Precision Twist Drill Jobber Length Drill Bit, General Purpose Standard Length, Series: D33F, Imperial, 3/32 in Drill - Fraction, 0.0938 in Drill - Decimal Inch, 2 in Overall Length, 3XD Cutting Depth, 2 Flutes, Spiral Flute, 1 in Flute Length, 3/32 in Shank, Straight Shank, 118 deg Point, Split/Self-Centering Point, Right Hand Cutting Direction, Carbide Cutting Edge, No Through Coolant, Carbide, Bright, Applicable Materials: Magnetic Soft Steel, Structural Steel/Case Carburizing Steel, Plain Carbon Steel, Alloy Steel/Hardened and Tempered Steel, Lamellar Graphite, Nodular Graphite/Malleable Cast Iron, Brass, Bronze, Thermoplastics, Thermosetting Plastics, Abrasive and Non-Ferrous Materials
Features
- Low thrust design
Specifications
Applicable MaterialsMagnetic Soft Steel, Structural Steel/Case Carburizing Steel, Plain Carbon Steel, Alloy Steel/Hardened and Tempered Steel, Lamellar Graphite, Nodular Graphite/Malleable Cast Iron, Brass, Bronze, Thermoplastics, Thermosetting Plastics, Abrasive and Non-Ferrous Materials
Cutting Depth3XD
Cutting DirectionRight Hand
Cutting Edge MaterialCarbide
Drill Diameter Measurement SystemImperial
Drill Size - Decimal Inch0.0938 in
Drill Size - Fraction3/32 in
FinishBright
Flute Length1 in
Flute TypeSpiral
MaterialCarbide
Number of Flutes2
Overall Length2 in
Point Angle118 deg
Point TypeSplit/Self-Centering
SeriesD33F
Shank Size3/32 in
Shank TypeStraight
Through Coolant (Yes/No)No
TypeGeneral Purpose Standard Length
Additional Information
Standards/ApprovalPROP65: This product contains chemicals known to t
Country of OriginUS
Specification Sheet
