SAIT UNIA 27349

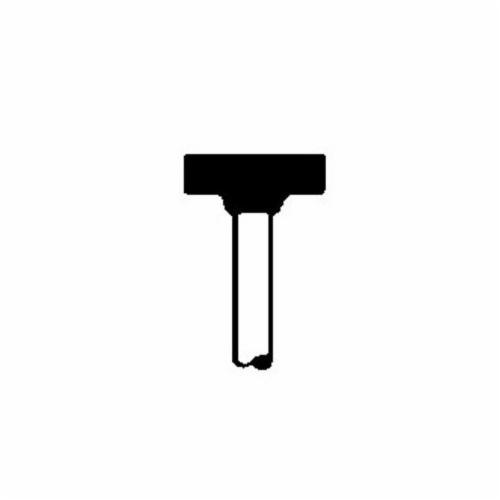

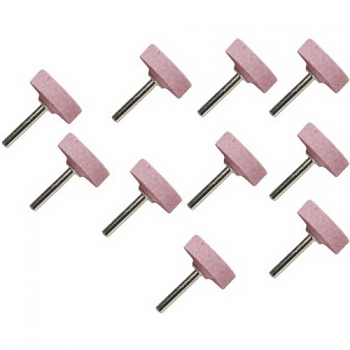

SAIT® 27349 Mounted Point, W236 Point, 1-1/2 in Dia x 1/2 in L Head, 1/4 in Dia Shank

UPC: 699053273495
UNSPSC: 23131514
Manufacturer PN: 27349
$7.32 EA
Factory Order
Estimated to ship in 14 days
QTY:


SAIT® Mounted Point, W236 Point Shape Code, 1-1/2 in Head Dia, 1/2 in Head Length, 1/4 in Shank Dia, 1-1/2 in Shank Length, 2 in Overall Length, R Density/Hardness, A60 Grit, Very Fine Grade, Aluminum Oxide Abrasive, 25470 rpm Maximum, Vitrified Porous Bond, Ferrous Metals Abrading Application

  • Features

  • These mounted bonded points are a low cost alternative to carbide burs
  • Each point is dressed for perfect balance to perform without vibration or run out
  • Mandrel overhang "O" must always be the lowest possible
  • Maximum speeds given refer to overhang "O" equal to 1/2 in
  • For use with die grinders

Specifications

ApplicationID Grinding, Mold Finishing and General Purpose Applications
Point Shape CodeW236
Head Diameter1-1/2 in
Head Length1/2 in
Shank Diameter1/4 in
Shank Length1-1/2 in
Overall Length2 in
Density/HardnessR
