SAIT UNIA 27320

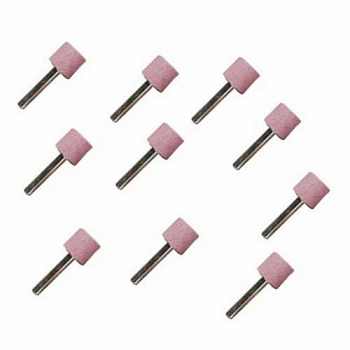

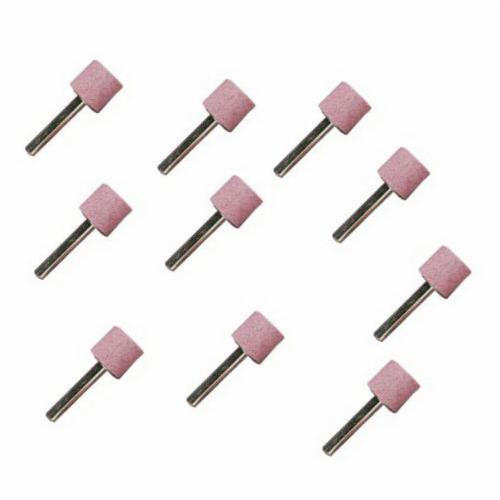

SAIT 27320 Mounted Point, W204 Point, 3/4 in Dia x 3/4 in L Head, 1/4 in Dia Shank

UPC: 699053273204
UNSPSC: 23131514
Manufacturer PN: 27320
$3.44 EA
Factory Order
Estimated to ship in 14 days
QTY:


SAIT Mounted Point, W204 Point Shape Code, 3/4 in Head Dia, 3/4 in Head Length, 1/4 in Shank Dia, 1-1/2 in Shank Length, 2-1/4 in Overall Length, R Density/Hardness, A60 Grit, Very Fine Grade, Aluminum Oxide Abrasive, 42750 rpm Maximum, Vitrified Porous Bond, Ferrous Metals Abrading Application

  • Features

  • These mounted bonded points are a low cost alternative to carbide burs
  • Each point is dressed for perfect balance to perform without vibration or run out
  • Mandrel overhang "O" must always be the lowest possible
  • Maximum speeds given refer to overhang "O" equal to 1/2 in
  • For use with die grinders

Specifications

ApplicationID Grinding, Mold Finishing and General Purpose Applications
Abrading ApplicationFerrous Metals
Abrasive MaterialAluminum Oxide
Bond TypeVitrified Porous
Density/HardnessR
GradeVery Fine
GritA60
Head Diameter3/4 in
Head Length3/4 in
Maximum Speed42750 rpm
Overall Length2-1/4 in

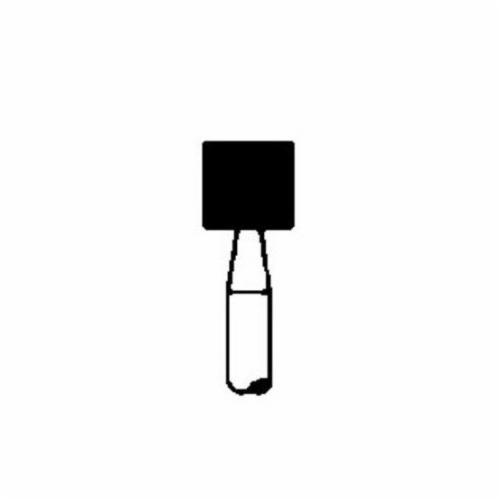

Point Shape CodeW204
Shank Diameter1/4 in
Shank Length1-1/2 in
