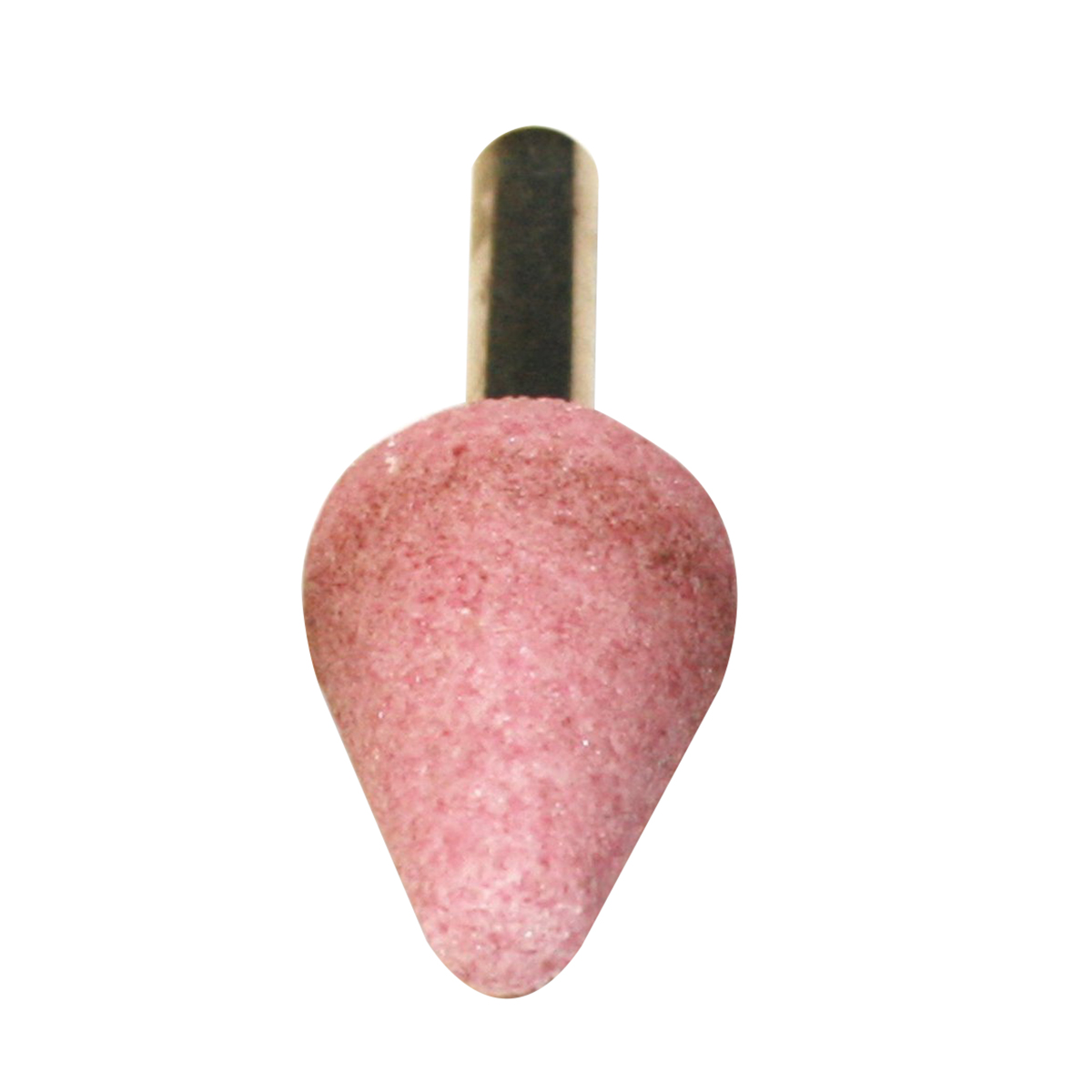

SAIT® Mounted Point, Point Shape Code: A5, 3/4 in Head Dia, 1-1/8 in Head Length, 1/4 in Shank Dia, 1-1/2 in Shank Length, 2-5/8 in Overall Length, Density/Hardness: R, A60 Grit, Very Fine Grade, Aluminum Oxide Abrasive, 45000 rpm Maximum, Vitrified Porous Bond, Abrading Application: Ferrous Metals
Features
- These mounted bonded points are a low cost alternative to carbide burs
- Each point is dressed for perfect balance to perform without vibration or run out
- Mandrel overhang "O" must always be the lowest possible
- Maximum speeds given refer to overhang "O" equal to 1/2 in
- For use with die grinders
Specifications
ApplicationID Grinding, Mold Finishing and General Purpose Applications
Point Shape CodeA5
Head Diameter3/4 in
Head Length1-1/8 in
Shank Diameter1/4 in
Shank Length1-1/2 in
Overall Length2-5/8 in
Density/HardnessR
