SAIT UNIA 22274

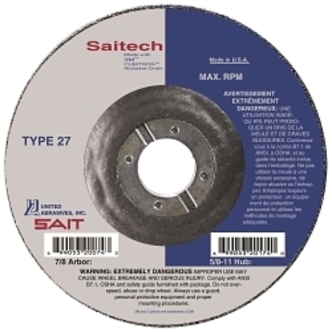

SAIT Saitech 22274 High Performance Pipeline Depressed Center Wheel, 5 in Dia x 1/8 in THK, 7/8 in Center Hole, 24 Grit, Ceramic Alumina Oxide Abrasive

Invoice description: Dt 5 X 5/32 X 7/8 Saitec H P Ipe 25/pkg Bbm06

UPC: 699053222745
UNSPSC: 31191600
Manufacturer PN: 22274
$15.78 EA
Factory Order
Estimated to ship in 14 days
QTY:


SAIT Saitech Pipeline Depressed Center Wheel, High Performance, 5 in Wheel Dia, 1/8 in Wheel Thickness, 7/8 in Center Hole, Arbor Connector, 24 Grit, Coarse Grade, Ceramic Alumina Oxide Abrasive, Wheel Type Number: Type 27, 12200 rpm Maximum, Resinoid Bond, Applicable Materials: Ferrous Metals, High Tensile Alloy and Stainless Steel, Wheel Hardness: R, Reinforced: Yes, Specifications Met: ANSI B165.1, ANSI B165.2, ANSI Z87.1, OSHA 29CFR 1910.1200

  • Features

  • Designed for both cutting and light grinding, eliminating the need for 2 separate wheels
  • All sizes reinforced with the highest quality fiberglass for maximum safety and performance
  • Our unique Super-Lock hub combines both a mechanical locking system and chemical bond providing one of the safest, vibration-free designs in the industry
  • Patented 3M ceramic abrasive grain formulation outlasts standard aluminum oxide wheels (Saitech)
  • Very uniform, high density grain structure is extremely durable and self-sharpening for long life and cooler cut
  • Long life combined with versatility for the pipeline industry

Specifications

ApplicationCutting and Light Grinding
Abrasive MaterialCeramic Alumina Oxide
Applicable MaterialsFerrous Metals, High Tensile Alloy and Stainless Steel
Bond TypeResinoid
Center Hole Size7/8 in
Connector TypeArbor
GradeCoarse
Grit24
Maximum Speed12200 rpm
ReinforcedYes
Specifications MetANSI B165.1, ANSI B165.2, ANSI Z87.1, OSHA 29CFR 1910.1200
TypeHigh Performance
Wheel Diameter5 in
Wheel HardnessR
Wheel Thickness1/8 in
Wheel Type NumberType 27

Additional Information

Standards/ApprovalPROP65: You create dust when you cut, sand, drill or grind materials such as wood, paint, cement, masonry or metal. This dust often contains chemicals known to cause cancer, birth defects or other reproductive harm.
Country of OriginUS
