GARR GARR 50049

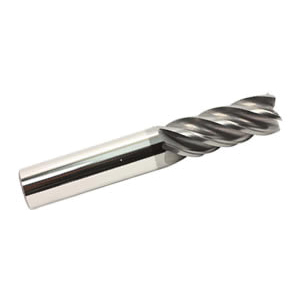

GARR 50049 V5 Center Cutting Variable Helix End Mill, 12 mm Dia Cutter, 32 mm Length of Cut, 5 Flutes, 12 mm Dia Shank, 75 mm OAL, AlCrN Coated

Invoice description: Em 12x32locx12x75mm 5fl Alcrn Var

UNSPSC: 27112803
Manufacturer PN: 50049
$99.70 EA
Factory Order
Estimated to ship in 7 days
QTY:


GARR End Mill, Center Cutting Variable Helix, Series: V5, 12 mm Diameter Cutter, 75 mm Overall Length, 32 mm Length of Cut, 5 Flutes, Staggered Flute, 12 mm Shank Diameter, Right Hand Cutting Direction, Plain Shank, Submicron Solid Carbide, AlCrN Coated

  • Features

  • For titanium, inconel and stainless steel
  • Special edge prep enhances tool life by 20%
  • Minimizes burr on part
  • Helix geometry varies over length of flutes
  • Staggered flutes to control harmonics
  • Variable flute design helps with chip evacuation
  • Variable rake aids in chip formation
  • Corner radius tolerance +/-0.001 in (+/-0.025 mm)

Specifications

ApplicationFor titanium, inconel and stainless steel
Cutter Diameter12 mm
Cutting DirectionRight Hand
FinishAlCrN Coated
Flute TypeStaggered
Length of Cut32 mm
MaterialSubmicron Solid Carbide
Number of Flutes5
Overall Length75 mm
SeriesV5
Shank Diameter12 mm
Shank TypePlain
TypeCenter Cutting Variable Helix

Additional Information

Country of OriginUS
