Sandvik Coromant SANC 6863480

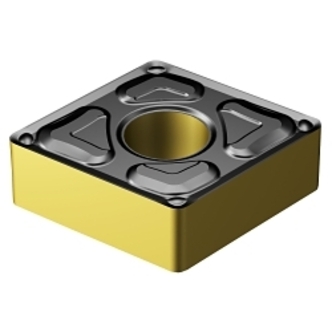

Sandvik Coromant 6863480 T-Max P Turning Insert, ANSI Code: CNMG 432-XF 4325, CNMG Insert, Material Grade: K, P, 432 Insert, Rhombic Shape, 12 Seat, Negative Rake, Neutral Cutting, For Use On Cast Iron and Steel, Carbide, Manufacturers Grade: 4325
Invoice description:
Cnmg 432-xf Grade 4325 Inserts
Factory Order
Sandvik Coromant Turning Insert, Series: T-Max P, CNMG Insert, 432 Insert, Rhombic, 0.157 in Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.187 in Thickness, 12 Seat, Negative Rake, XF Chipbreaker, 0.0312 in Corner Radius, 0.2029 in Hole Dia, Manufacturers Grade: 4325, ANSI Code: CNMG 432-XF 4325, ISO Code: CNMG 12 04 08-XF 4325, 80 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: K, P, For Use On: Cast Iron and Steel
Specifications
ApplicationFinishing Applications
ANSI CodeCNMG 432-XF 4325
ChipbreakerXF
Corner Radius0.0312 in
Cutting DirectionNeutral
FinishCVD-TiCN+Al2O3+TiN Coated
For Use OnCast Iron and Steel
Hole Diameter0.2029 in
Included Angle80 deg
Inscribed Circle1/2 in
Insert Size432
Insert StyleCNMG
ISO CodeCNMG 12 04 08-XF 4325
Manufacturers Grade4325
MaterialCarbide
Material GradeK, P
Maximum Depth of Cut0.157 in
RakeNegative
Relief Angle0 deg
Seat Size12
SeriesT-Max P
ShapeRhombic
Thickness0.187 in
Additional Information
Country of OriginSE
