GARR GARR 42203

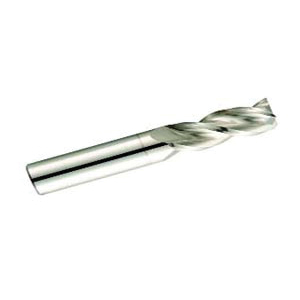

GARR 143M 20x100 Center Cutting Square End End Mill, 20 mm Dia Cutter, 25 mm Length of Cut, 3 Flutes, 20 mm Dia Shank, 100 mm OAL, Alumastar® Coated
Invoice description:
Em 20x25locx20x100mm 3fl Alum
Factory Order
GARR End Mill, Center Cutting Square End, Series: 143M, 20 mm Diameter Cutter, 100 mm Overall Length, 25 mm Length of Cut, 3 Flutes, Spiral Flute, 20 mm Shank Diameter, Right Hand Cutting Direction, 38 deg Helix Angle, Submicron Solid Carbide, Alumastar® Coated
Features
- Specific coating engineered to repel aluminum
- Engineered to run at 750 to 2500 sfm
- High velocity - high metal removal rate
- Use properly balanced holders
- Holds perpendicularity
- Flats can be added within 48 hrs for a nominal charge
- For high speed machining of aluminum
Specifications
ApplicationFor high speed machining of aluminum
TypeCenter Cutting Square End
Series143M
Cutter Diameter20 mm
Overall Length100 mm
Length of Cut25 mm
Number of Flutes3
Flute TypeSpiral
Shank Diameter20 mm
Cutting DirectionRight Hand
Helix Angle38 deg
Additional Information
Country of OriginUS
