GARR GARR 41913

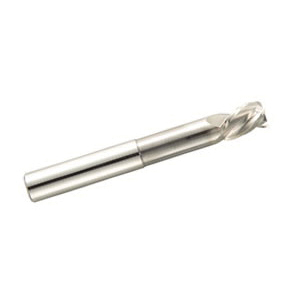

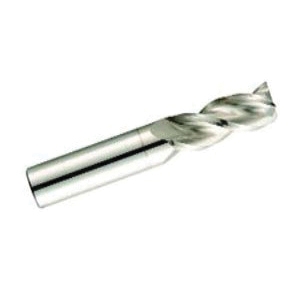

GARR 41913 143M Center Cutting Square End Mill With Neck, 12 mm Dia Cutter, 16 mm Length of Cut, (3) Flutes, 12 mm Dia Shank, 100 mm OAL, Alumastar Coated
Invoice description:
Em 12x16locx12x100mm 3fl Alum Neck
Factory Order
GARR, 41913, Mill With Neck, Center Cutting Square End, Series: 143M, 12 mm Diameter Cutter, 100 mm Overall Length, 16 mm Length of Cut, 3 Flutes, Spiral Flute, 12 mm Shank Diameter, Right Hand Cutting Direction, 38 deg Helix Angle, Submicron Solid Carbide, Alumastar Coated
Features
- Specific coating engineered to repel aluminum
- Engineered to run at 750 to 2500 sfm
- High velocity - high metal removal rate
- Use properly balanced holders
- Holds perpendicularity
- Flats can be added within 48 hrs for a nominal charge
- For high speed machining of aluminum
Specifications
ApplicationFor high speed machining of aluminum
Cutter Diameter12 mm
Cutting DirectionRight Hand
FinishAlumastar Coated
Flute TypeSpiral
Helix Angle38 deg
Length of Cut16 mm
MaterialSubmicron Solid Carbide
Number of Flutes3
Overall Length100 mm
Series143M
Shank Diameter12 mm
TypeCenter Cutting Square End
Additional Information
Country of OriginUS
