GARR GARR 41222

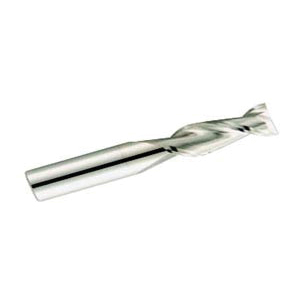

GARR 41222 142M Center Cutting Square End Mill, 4 mm Dia Cutter, 12 mm Length of Cut, 2 Flutes, 6 mm Dia Shank, 50 mm OAL, Alumastar Coated
Invoice description:
Em 4x12locx6x50mm 2fl Alum
Factory Order
GARR End Mill, Center Cutting Square End, Series: 142M, 4 mm Diameter Cutter, 50 mm Overall Length, 12 mm Length of Cut, 2 Flutes, Spiral Flute, 6 mm Shank Diameter, Right Hand Cutting Direction, 41 deg Helix Angle, Submicron Solid Carbide, Alumastar Coated
Features
- Specific coating engineered to repel aluminum
- Engineered to run at 750 to 2500 sfm
- High velocity - high metal removal rate
- Use properly balanced holders
- Holds perpendicularity
- Flats can be added within 48 hrs for a nominal charge
- For high speed machining of aluminum
Specifications
ApplicationFor high speed machining of aluminum
Cutter Diameter4 mm
Cutting DirectionRight Hand
FinishAlumastar Coated
Flute TypeSpiral
Helix Angle41 deg
Length of Cut12 mm
MaterialSubmicron Solid Carbide
Number of Flutes2
Overall Length50 mm
Series142M
Shank Diameter6 mm
TypeCenter Cutting Square End
Additional Information
Country of OriginUS
