GARR GARR 40787

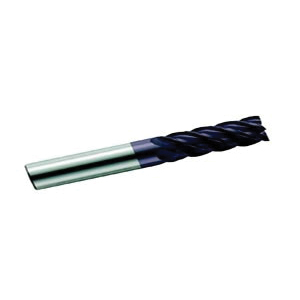

GARR 40787 855MA Center Cutting Square End Mill, 25 mm Dia Cutter, 28 mm Length of Cut, 5 Flutes, 25 mm Dia Shank, 100 mm OAL, AlTiN/X.CEED Coated

Invoice description: Em 25x28locx25x100mm 5fl Altin

UNSPSC: 27112803
Manufacturer PN: 40787
$278.10 EA
Factory Order
Estimated to ship in 7 days
QTY:


GARR End Mill, Center Cutting Square End, Series: 855MA, 25 mm Diameter Cutter, 100 mm Overall Length, 28 mm Length of Cut, 5 Flutes, Helix Flute, 25 mm Shank Diameter, Right Hand Cutting Direction, 45 deg Helix Angle, Submicron Solid Carbide, AlTiN/X.CEED Coated

  • Features

  • High performance milling in steels, stainless steel and exotics
  • Rigid work holding, machine stability and part integrity are critical
  • Up to 40% faster than uncoated
  • Improved finishes in titanium
  • Heavy core
  • Sharp corners

Specifications

ApplicationDry or Semi-Dry Machining
Cutter Diameter25 mm
Cutting DirectionRight Hand
FinishAlTiN/X.CEED Coated
Flute TypeHelix
Helix Angle45 deg
Length of Cut28 mm
MaterialSubmicron Solid Carbide
Number of Flutes5
Overall Length100 mm
Series855MA
Shank Diameter25 mm
TypeCenter Cutting Square End

Additional Information

Country of OriginUS
