GARR GARR 40247

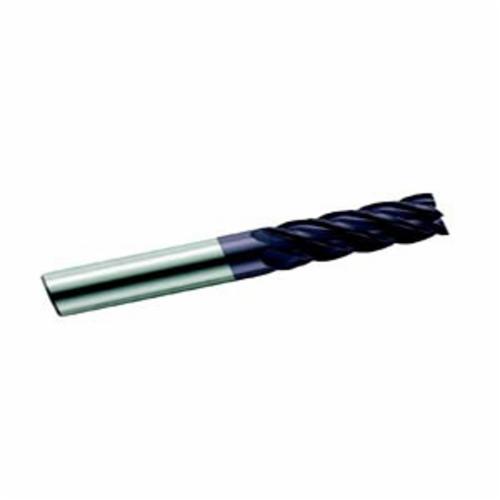

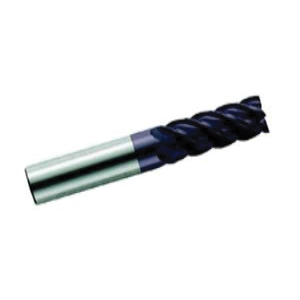

GARR 40247 855MA Center Cutting Single End Square End High Performance End Mill, 6 mm Dia Cutter, 32 mm Length of Cut, 5 Flutes, 6 mm Dia Shank, 100 mm OAL, TiALN Coated
Invoice description:
Em 6x32locx6x100mm 5fl Tialn Hp
Factory Order
GARR High Performance End Mill, Center Cutting Single End Square End, Series: 855MA, 6 mm Cutter Dia, 100 mm Overall Length, 32 mm Length of Cut, 5 Flutes, Spiral Flute, 6 mm Shank Dia, Right Hand Cutting, 45 deg Helix Angle, Plain/Round Shank, 68 mm Shank Length, Solid Submicron Carbide, TiALN Coated
Features
- High performance milling in steels, stainless steel and exotics
- Rigid work holding, machine stability and part integrity are critical
- Up to 40% faster than uncoated
- Improved finishes in titanium
- Heavy core
- Sharp corners
Specifications
ApplicationDry or Semi-Dry Machining
Cutter Diameter6 mm
Cutting DirectionRight Hand
FinishTiALN Coated
Flute TypeSpiral
Helix Angle45 deg
Length of Cut32 mm
MaterialSolid Submicron Carbide
Number of Flutes5
Overall Length100 mm
Series855MA
Shank Diameter6 mm
Shank Length68 mm
Shank TypePlain/Round
TypeCenter Cutting Single End Square End
Additional Information
Country of OriginUS
