Cleveland PRO C52154

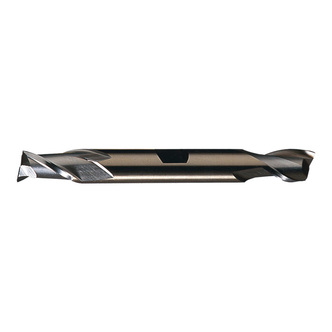

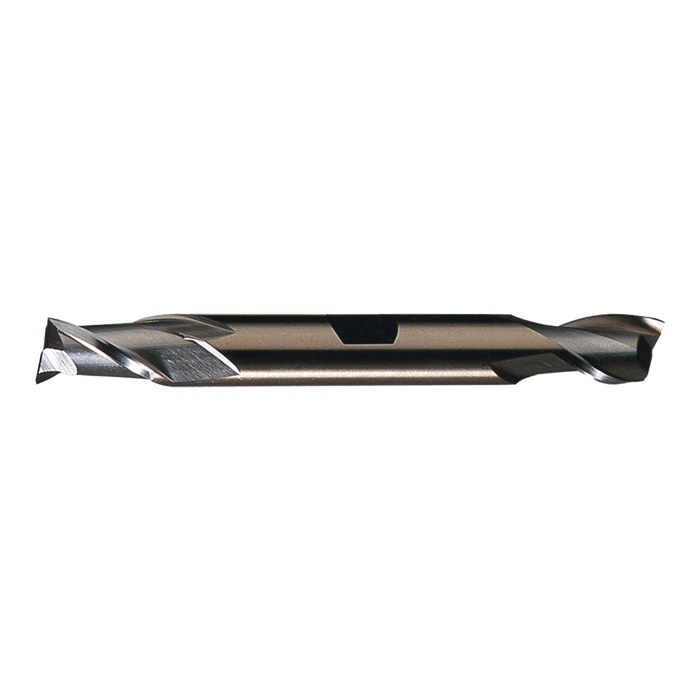

Cleveland C52154 HDC-2 Center Cutting Double End General Purpose Square End End Mill, 7/32 in Dia Cutter, 1/2 in Length of Cut, 2 Flutes, 3/8 in Dia Shank, 3-1/4 in OAL, Bright
Invoice description:
7/32 #565 2fl De Cobalt End Mill, C52154
In stock
(1)
Cleveland End Mill, Center Cutting Double End General Purpose Square End, Series: HDC-2, 7/32 in Diameter Cutter, 3-1/4 in Overall Length, 1/2 in Length of Cut, 2 Flutes, Spiral Flute, 3/8 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Straight/Weldon Flat Shank, Cobalt 8/M42 HSS, Bright
Features
- High red hardness for high heat conditions
- 2-Flute end mills have greater chip ejection capacity and are ideal for slotting
- Coatings reduce heat and abrasion to increase tool life
- The increased lubricity of the coating surface reduces material adhesion and built-up edge, enabling even higher feed rates
- Coatings reduce the amount of torque required for machining to allow more efficient use of equipment
- Applicable on stainless steel, titanium alloys, nickel alloys and cobalt alloys

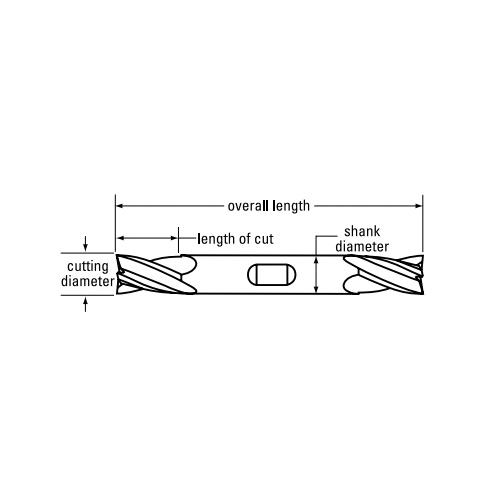

Specifications
ApplicationGeneral Finishing Applications
Cutter Diameter7/32 in
Cutting DirectionRight Hand
FinishBright
Flute TypeSpiral
Helix Angle30 deg
Length of Cut1/2 in
MaterialCobalt 8/M42 HSS
Number of Flutes2
Overall Length3-1/4 in
SeriesHDC-2
Shank Diameter3/8 in
Shank TypeStraight/Weldon Flat
TypeCenter Cutting Double End General Purpose Square End
Additional Information
Standards/ApprovalANSI Specified
